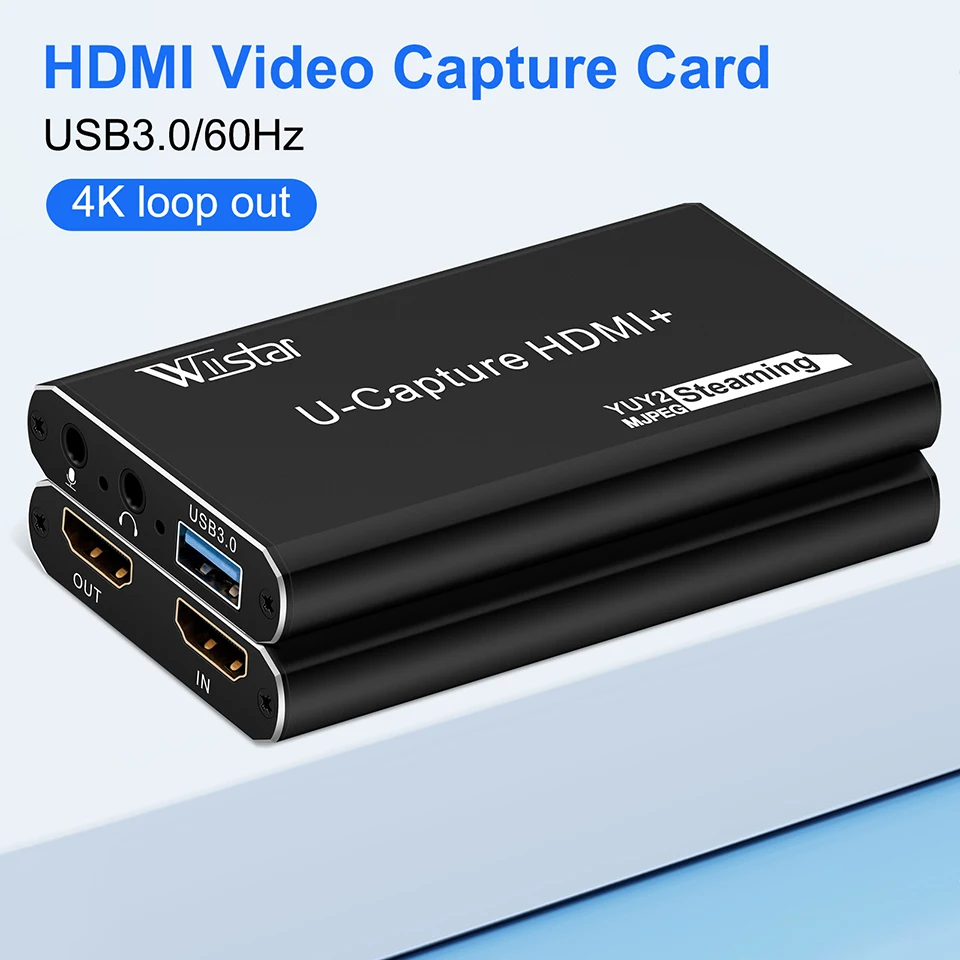

USB3.0 HDMI Video Capture Card 1080P@60Hz HDMI Loopout 4K30Hz Capture Video Support YUY2 Standard for Game Recording Live Streaming PS4 Camera USB3.0 Grabber

Description:

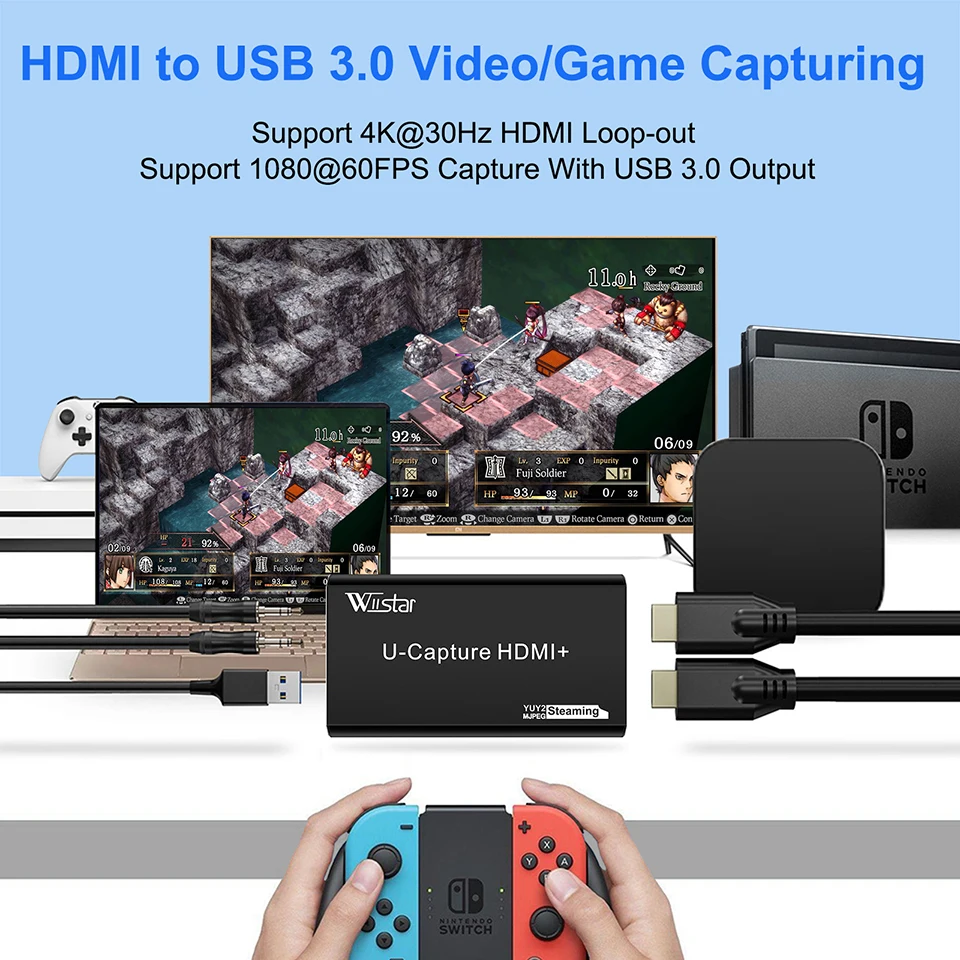

The HDMI to USB 3.0 video capture card with HDMI loop output has the characteristics of simple installation, convenient carrying, superior performance and good compatibility. Easily capture up to 4K10Hz/1080P60Hz video via the HDMI, such as Xbox, PS4, camcorders, digital SLR cameras. And connect to laptops, desktops devices via USB3.0 port for final video editing. Besides, the HDMI loopout function makes you can view the video on the big screen and enjoy higher visual effects. It compatible with Windows, Linux, MacOS X and other systems. Easy for live streaming via Youtube or Twitch.

Standard 9-core USB 3.0 video data acquisition, no image compression, more realistic and smooth picture

Features

• The HDMI input and output resolution support up to 4K30Hz.

• With HDMI loop output, enjoy a higher visual effects.

• USB3.0 port capture video up to 1080P@60Hz.

• No need to install driver; just use free third-party capture software to plug and play.

• Compatible with Windows, Linux, OS X operating system.

• The transmission and processing of audio and video is through a dedicated device that does not take up CPU memory.

• Flexible customization of multiple areas: education, medical, conference, big screen, IPTV streaming.

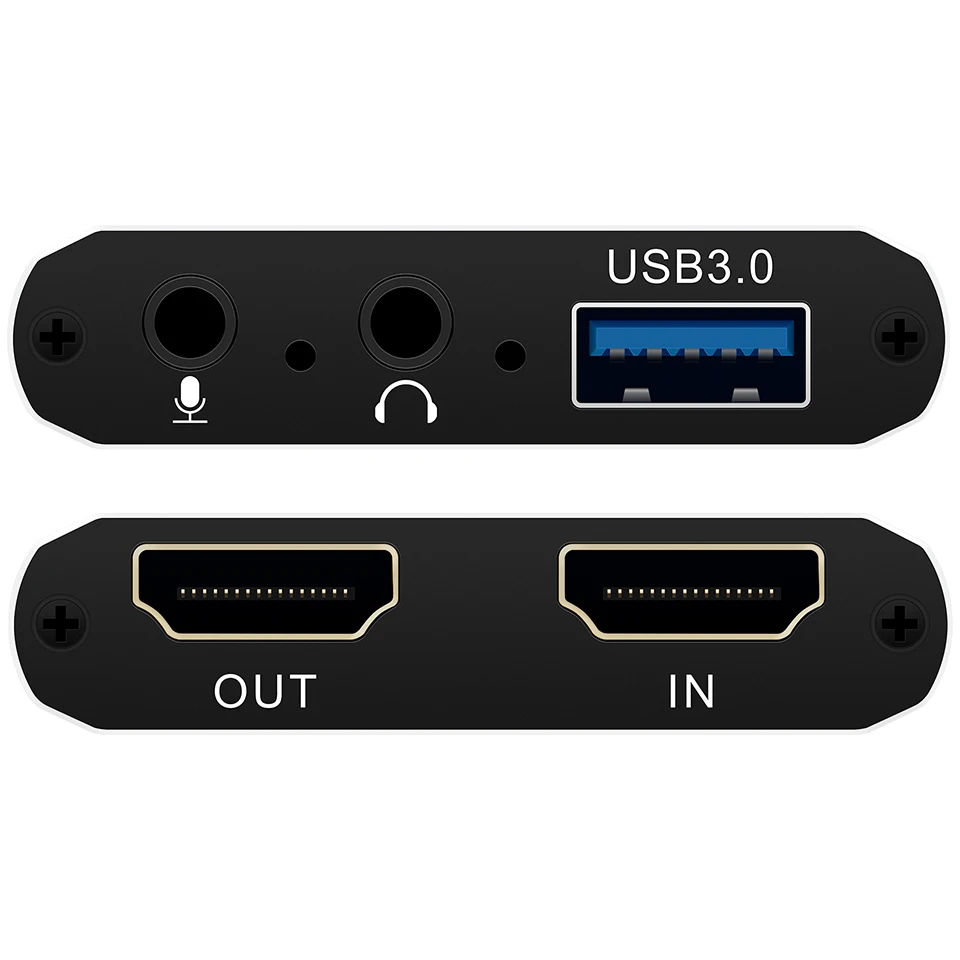

• Support 3.5mm audio output. External audio or headphones can be connected.

• Support MIC. This 4K HDMI capture card allows game lovers to stream voice in real time, record voice and add their own voice to the game, so as to smoothly mix line audio and microphone audio into the game.

• USB3.0 port ,transmission speed up to 5.0Gbps (500MB/s), let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.

• Support YUY2.

• Audio and video format: support UVC standard and UAC standard

NOTE:

• The HDMI interface of this product supports up to 4K30Hz, 1080P@60Hz.

• NOT support 1080P120hz and 4K60hz. Please check the resolution of the video source before use.

• The USB3.0 video capture card does not work immediately after being connected. You need to open your connected device in the third-party software settings, and then you can start to capture video.

These are some free software links, you can copy and download it in your computer.

https://potplayer.en.softonic.com/

https://obsproject.com/

https://amcap.en.softonic.com/download

Q&A:

Why doesn’t it work for my gopro?

• Generally, the default resolution of gopro is 1080P120HZ or 4k60HZ. Please adjust and set the resolution output on gopro.

Why does it only display resolutions up to 1440×1080 instead of 1920×1080?

• Please check whether your computer monitor supports 1920×1080. If your computer does not support 1920×11080, you can only capture 1440×1080 or less video.

Why is there noise in the captured video?

• Before re-recording the video, check and correctly set up the computer’s audio.

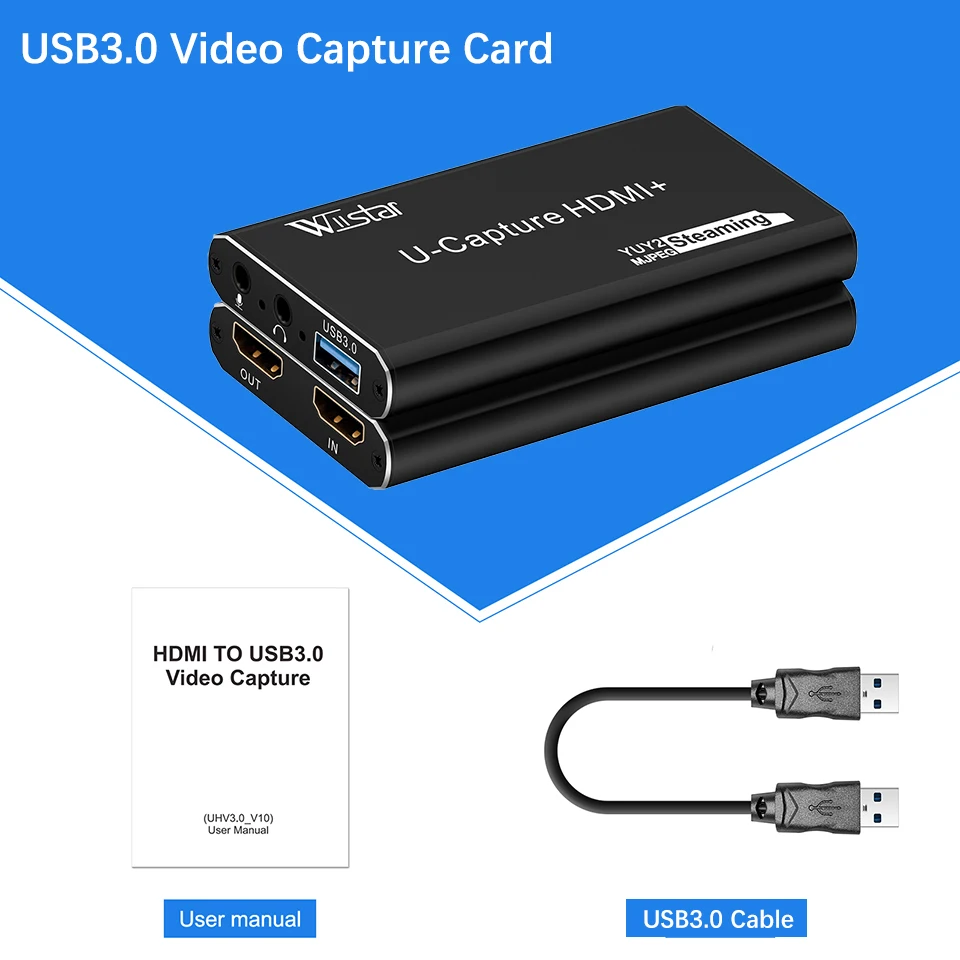

Packing List:

USB3.0 HDMI Video Capture Card * 1

USB3.0 Cable * 1

User Manual * 1
