Product selection table – refer to the following introduction for details：

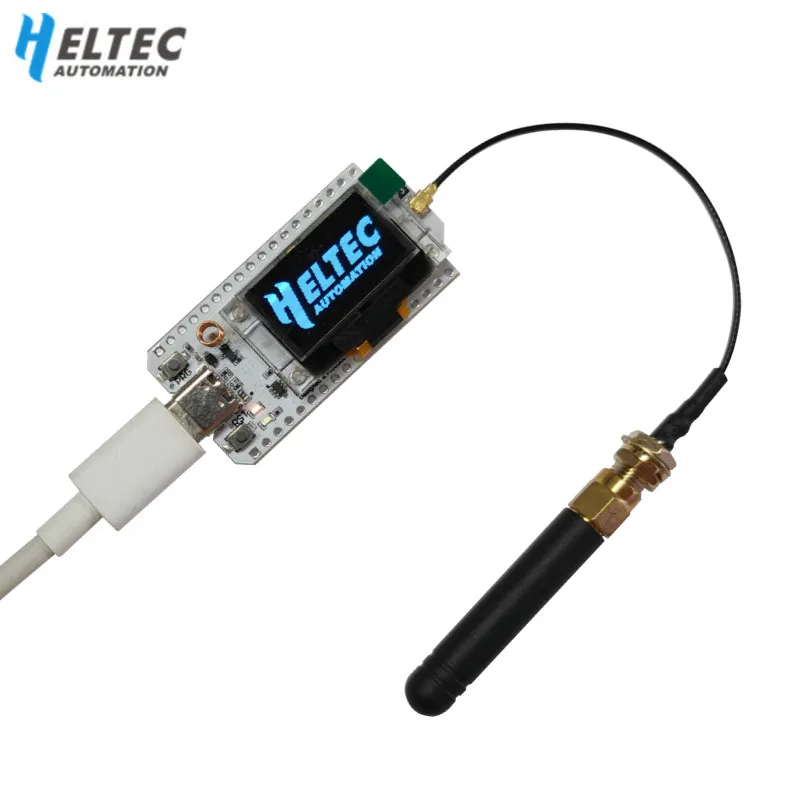

WiFi LoRa 32 (V3):
Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
Support the Arduino development environment.
We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. it can be found on this page;
With good RF circuit design and low-power design.
Master Chip:ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chipset:SX1262
USB to Serial Chip:CP2102
Frequency :470~510 MHz, 863~928 MHz
Max. TX Power :21 ± 1 dBm
Max. Receiving sensitivity:-139 dBm
Wi-Fi :802.11 b/g/n, up to 150Mbps
Bluetooth:Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware Resource :7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory:384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface:Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery:3.7V lithium battery power supply and charging
Operating temperature:-20 ~ 70 ℃
Dimensions:50.2 * 25.5* 10.2 mm
For more product details, please click the picture to view！

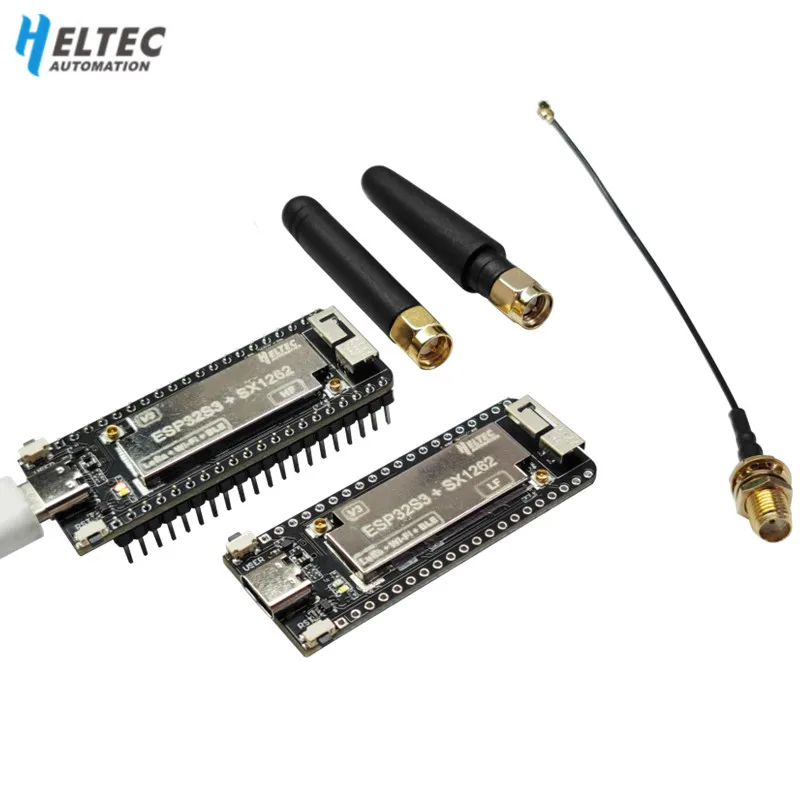

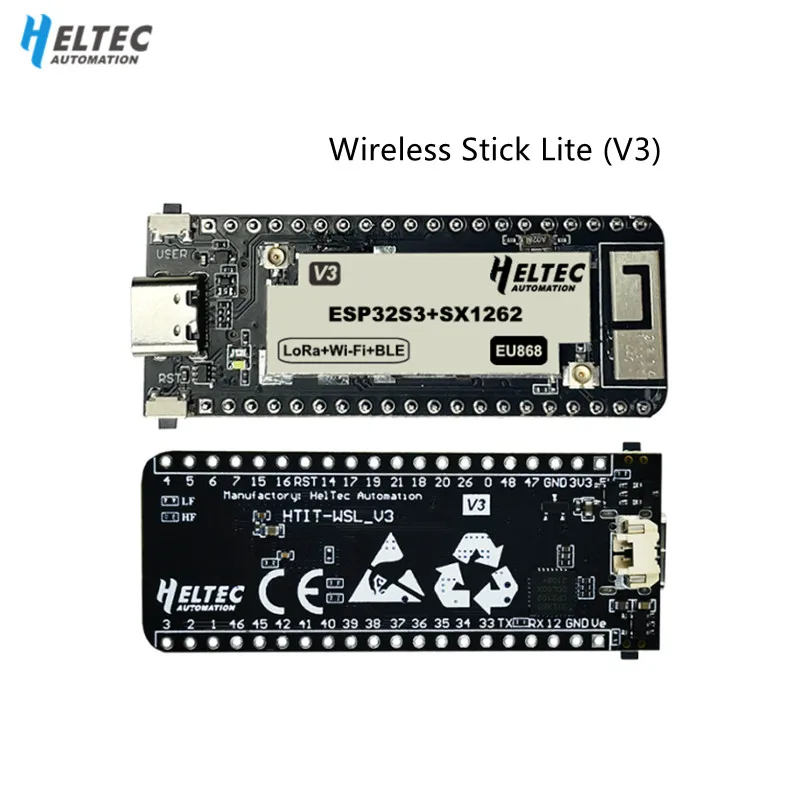

Wireless Stick Lite (V3):
Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.
Integrated CP2102 USB to serial port chip, convenient for program downloading,debugging information printing.
Support the Arduino development environment.
We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. In order to make this code running, a unique license is needed. it can be found on this page;
With good RF circuit design and low-power.
Master Chip:ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chipset:SX1262
USB to Serial Chip:CP2102
Frequency:470~510 MHz, 863~928 MHz
Max. TX Power:21 ± 1 dBm
Max. Receiving sensitivity:-139 dBm
Wi-Fi :802.11 b/g/n, up to 150Mbps
Bluetooth:Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware Resource:7*ADC1 + 9*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory:384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface:Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0); 2*20*2.54 Header Pin
Battery:3.7V lithium battery power supply and charging
Operating temperature :-20 ~ 70 ℃
Dimensions :58.08 * 22.6* 8.2 mm
For more product details, please click the picture to view！
Wireless Shell (V3):
CE Certificate;
Microprocessor:ESP32-S3FN8 (Xtensa ® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240 MHz), with LoRa node chip SX1262;
RF shielding (contain a shield shell) and other protection measures;
Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket;
(Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried onthis page);
With good RF circuit design and basic low-power design (sleep current: 9uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.
Master Chip :ESP32-S3FN8(Xtensa®32-bit lx7 dual core processor)
LoRa Chipset :SX1262
Frequency: 470~510MHz, 863~928MHz
Max TX Power: 21±1dBm
Max. Receiving sensitivity: -139dBm
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware Resource :7*ADC1+8*ADC2; 9*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory:384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface:LoRa ANT(IPEX1.0); 2.4G ANT (IPEX1.0); 1.27 spacing Stamp hole.
Power consumption: 9uA
Operating temperature :-40~85℃
Dimensions :38.4 * 16.1* 2.8 mm
For more product details, please click the picture to view！

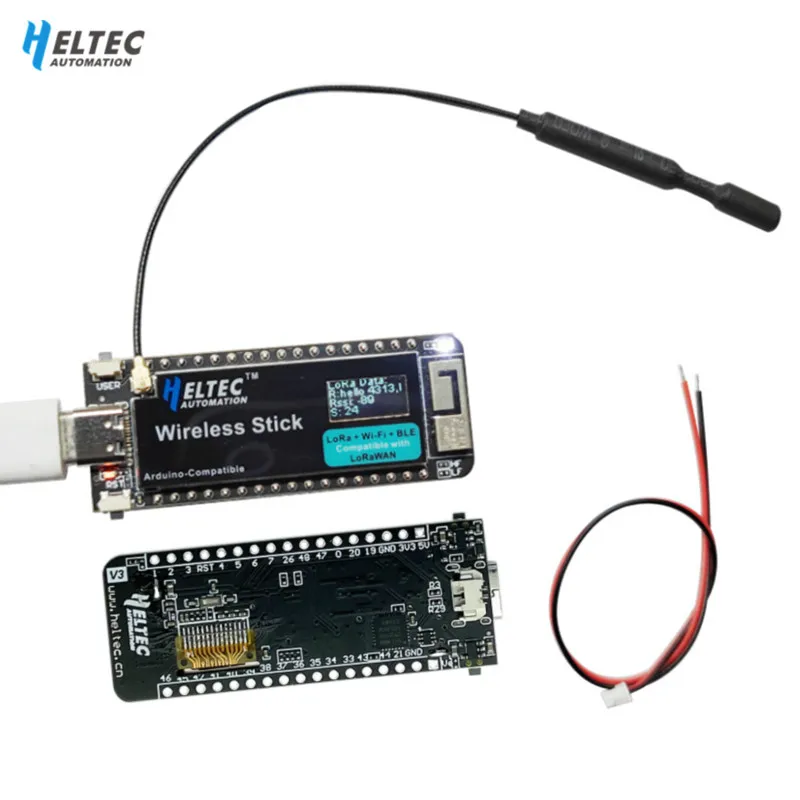

Wireless Stick（V3):
CE Certificate;
Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz);
SX1262 LoRa node chip.
Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal 3D antenna, reserved IPEX (U.FL) interface for LoRa use;
Onboard 0.49-inch 64*32 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
Integrated CP2102 USB to serial port chip, convenient for program downloading,debugging information printing.
Support the Arduino development environment;
(Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried on this page);
With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.
Master Chip:ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chipset :SX1262
USB to Serial Chip :CP2102
Frequency :470~510 MHz, 863~928 MHz
Max. TX Power: 21 ± 1 dBm
Max. Receiving sensitivity :-139 dBm
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth :Bluetooth LE: Bluetooth 5, Bluetooth mesh
Display :0.49-inch OLED
Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory:384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface:Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*17*2.54 Header Pin
Battery :3.7V lithium battery power supply and charging
Operating temperature :-20 ~ 70 ℃
Dimensions:58.08 * 22.6* 8.2 mm
For more product details, please click the picture to view！

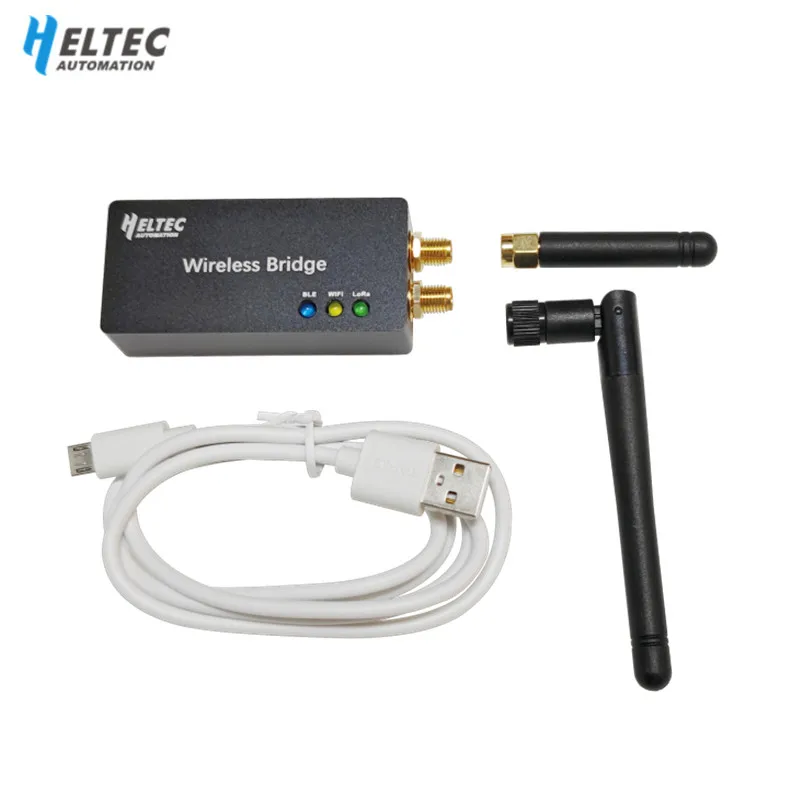

Wireless Bridge:
CE Certificate;
Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276;
8M Byte SDRAM and 8M Byte FLASH, these features will allow WiFi and BlueTooth to work at the same time.
+5V DC Micro USB power input, with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
SMA socket for LoRa, WiFi/BlueTooth antenna;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Support the Arduino development environment;
We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. In order to make this code running, a unique license is needed. it can be found on this page.
MCU :ESP32-D0WDQ6
LoRa Chip: SX1276
WiFi :802.11b/g/n(802.11u up to 150Mbps)
Bluetooth :Bluetooth V4.2 BR/EDR and Bluetooth LE sepcificatio
Frequency :863～928MHz, 433～510MHz
Max. Receiving sensitivity: -135dBm
Max. TX Power: 18 ± 1 dBm①
Hardware Resourse: Not cite
Memory:8MB(64M-bits) SPI FLASH, internal 520KB SRAM, 8MB(64M-bits) PSRAM
Operating temperature: -20 ~ 70 ℃
Interface:Micro USB*1; LoRa Antenna interface(SMA);2.4G Antenna interface(SMA)
Dimensions: 66(+10) x 30 x 15 mm
USB to UART chip: CP2102
Battery: 3.7V Lithium (SH1.25*2 interface
Low Power: Deep sleep 800uA
For more product details, please click the picture to view！
CubeCell – Dev-Board (V2):AB01
Perfect Arduino-Compatible!
CE and FCC certification;
Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;
Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Good impendence matching and long communication distance.
Master Chip: ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
LoRa Chipset :SX1262
Frequency :470~570MHz, 863~928MHz
Max TX Power: 21±1dBm
Receiving sensitivity: -139dBm
USB to Serial Chip :CP2102
Hardware Resource:1*SPI; 1*I2C; 1*UART; 1*12-bit ADC; 1*SWD; 8*GPIO;
2*PWM; 8-Channel DMA engine
Memory :128Kbites FLASH; 16Kbites SRAM
Interface:Type-C USB; LoRa ANT (IPEX 1.0); SH1.25; 2*2.54*11 Pin
Header; 1*2.54*2 Pin Header
Battery :3.7V lithium battery power supply and charging
Solar Energy: VS pin can be connected to 5.5 ~ 7V solar panel
Power consumption: Deep Sleep 3.5uA
Operating temperature: -20~70℃
Dimensions :40.64 * 22.86 * 7.6 mm
For more product details, please click the picture to view！
Specail Case for Heltec Wifi Lora 32 Version V3 Version Box:
HT-M01S Indoor LoRa Gateway (Rev.2.0):
Generally speaking, HT-M01S (Rev. 2.0) has the following three features:
Can be used as a regular LoRaWAN gateway;
Can be used as Helium Beacon Sniffer;
Can be used as an external transfer of Heltec Indoor Hotspot.
Type C wire included, adapter is not included;
Including WiFi, LoRa antenna;
External transceiver function only for Heltec Hotspots.
The most significant feature of HT-M01S (Rev. 2.0) is that it is a standard LoRaWAN gateway based on ESP32 MCU, without running Linux operating system on a high-performance CPU, which can greatly reduce the cost of a common LoRaWAN gateway.
It also acts as an assist device for the Helium Hotspot. When you are participating in the Helium project, you may have the following needs:
1:You may need a device that can detect the number of nearby Beacons, help you find the best deployment location, and get as much profit as possible.
2:When your Helium hotspot is deployed, you will find that the long antenna feeder will cause signal attenuation and affect your choice of antenna placement.
3 In 1 function:
Helium Beacon Sniffer;
LoRa External Transceiver (Only for the Helium hotspot made by Heltec);
Ready to use Normal LoRaWAN Gateway.
ESP32 MCU;
Wi-Fi and Ethernet supported;
Based on Heltec HT1303 LoRaWAN Concentrator Module;
Maximum output: 27 ± 2 dBm
The power supply voltage: 5V
Support for LoRaWAN Class A, and Class C protocols;
-40°C to 85°C maximum operating temperature range;
Working bands: Full band coverage corresponds to the working frequency option.
For more product details, please click the picture to view！
HT-CT62:
Microprocessor: ESP32-C3FN4 (RISC-V architecture 32-bit, main frequency up to 160 MHz)
Integrated WiFi network connection, onboard Wi-Fi, IPEX socket.
Support the Arduino development environment;
LoRaWAN 0.2support;
Ultra low power design, 10uA in deep sleep;
1.27 stamp edge design for SMT;
Good impendence matching and long communication
Master Chip: ESP32-C3FN4(32-bit@RISC-V architecture)
WiFi :802.11 b/g/n, up to 150Mbps
LoRa Chipset :SX1262
Frequency :470~510MHz, 863~928MHz
Max. TX Power :21±1dBm
Max. Receiving sensitivity: -139dBm
Hardware Resource:5*ADC1+1*ADC2; 2*UART; 1*I2C; 3*SPI; 15*GPIO;
etc.
Memory:384KB ROM; 400KB SRAM; 8KB RTC SRAM; 4MB SiP Flash
Interface:2.4G ANT (IPEX1.0); LoRa ANT(IPEX1.0); 2*11*1.27 spacing Stamp hole
Power consumption :Deep Sleep 10uA
CubeCell – Module (V2):
Perfect Arduino-Compatible!
CE and FCC certification;
Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;
1.27 stamp edge design for SMT;
Good impendence matching and long communication distance.
Master Chip: ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
LoRa Chipset: SX1262
Frequency: 470~510MHz, 863~928MHz
Max. TX Power :21±1dBm
Max. Receiving sensitivity: -139dBm
Hardware Resource:1*SPI; 1*I2C; 1*UART; 1*12-bit ADC; 1*SWD; 8*GPIO; 2*PWM; 8-Channel DMA engine
Memory :128Kbites FLASH; 16Kbites SRAM
Interface :LoRa ANT (IPEX 1.0); 1.27 spacing Stamp hole
Power consumption: Deep Sleep 3.5uA
Operating temperature: -40~85℃
Dimensions :18 * 18 * 3 mm
