- Dimensions: 13*6.5cm
- Operating Temperature: Normal
- Output Voltage: 230V
- Accuracy Class: /-2%
- Phase: single phase
- Model Number: Digital Voltmeter Ammte
- Max Operating Current: 19A & Under
- Rated Voltage: 230V
- Power Supply: AC
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: JUANJUAN
- Origin: Mainland China
- Certification: NONE
- Name: Digital Current Meter
- Operating current: Max 16A
- Timing display range: 0 second-9999 days
- Wattage display (watts): 0W-3680W
- DIY supplies: electric

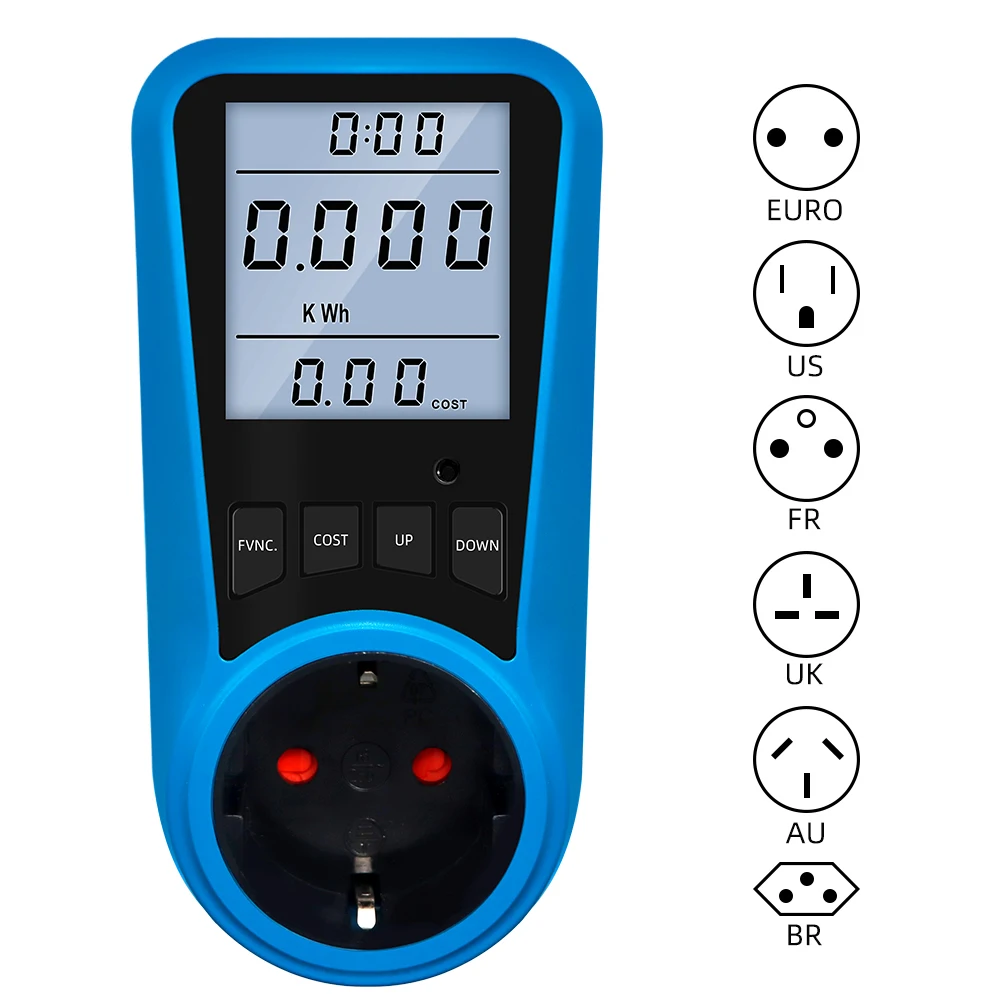

- Plug: EU/US/AU/FR/IT/UK/BR Plug
EU Plug Socket Digital Current Meter Voltmeter AC Power Meter Time Watt Power Energy Tester Wattmeter US UK AU FR BR IT Plug
please attention No Battery

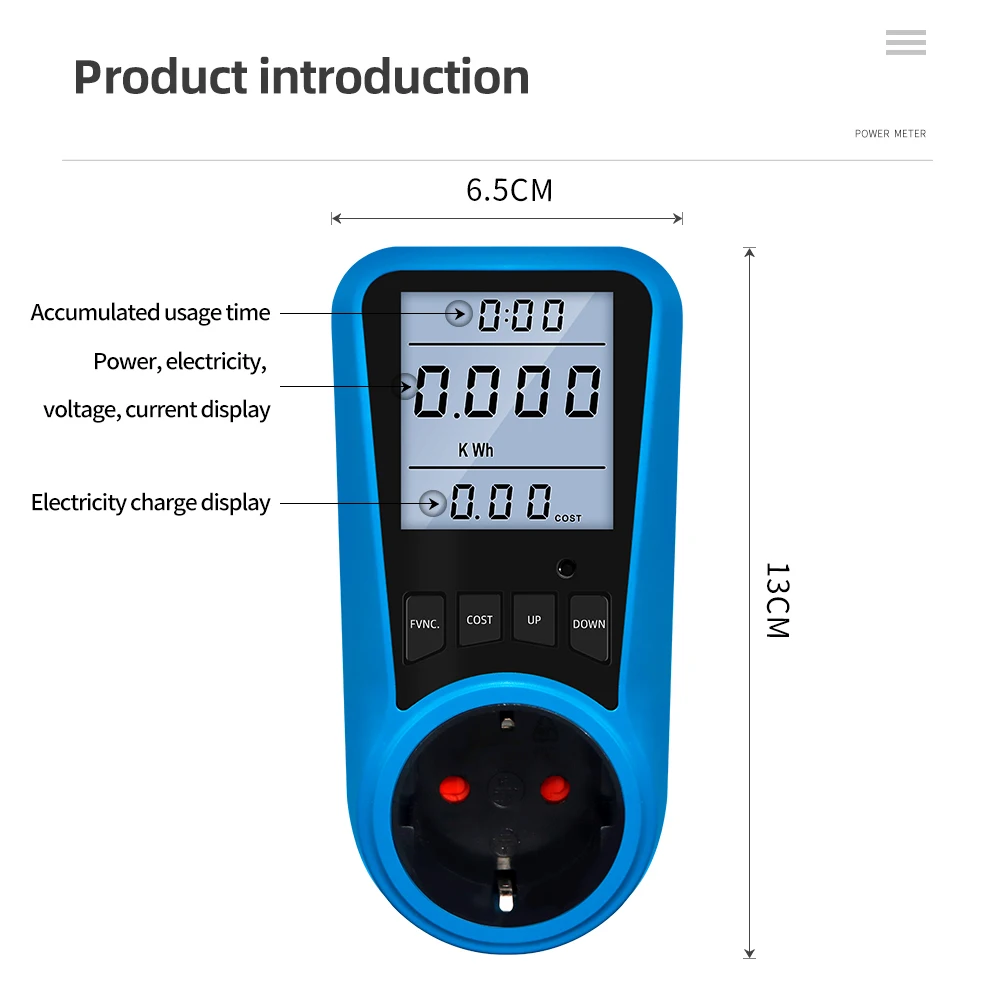

Large & Clear LCD Display for Easy Reading.

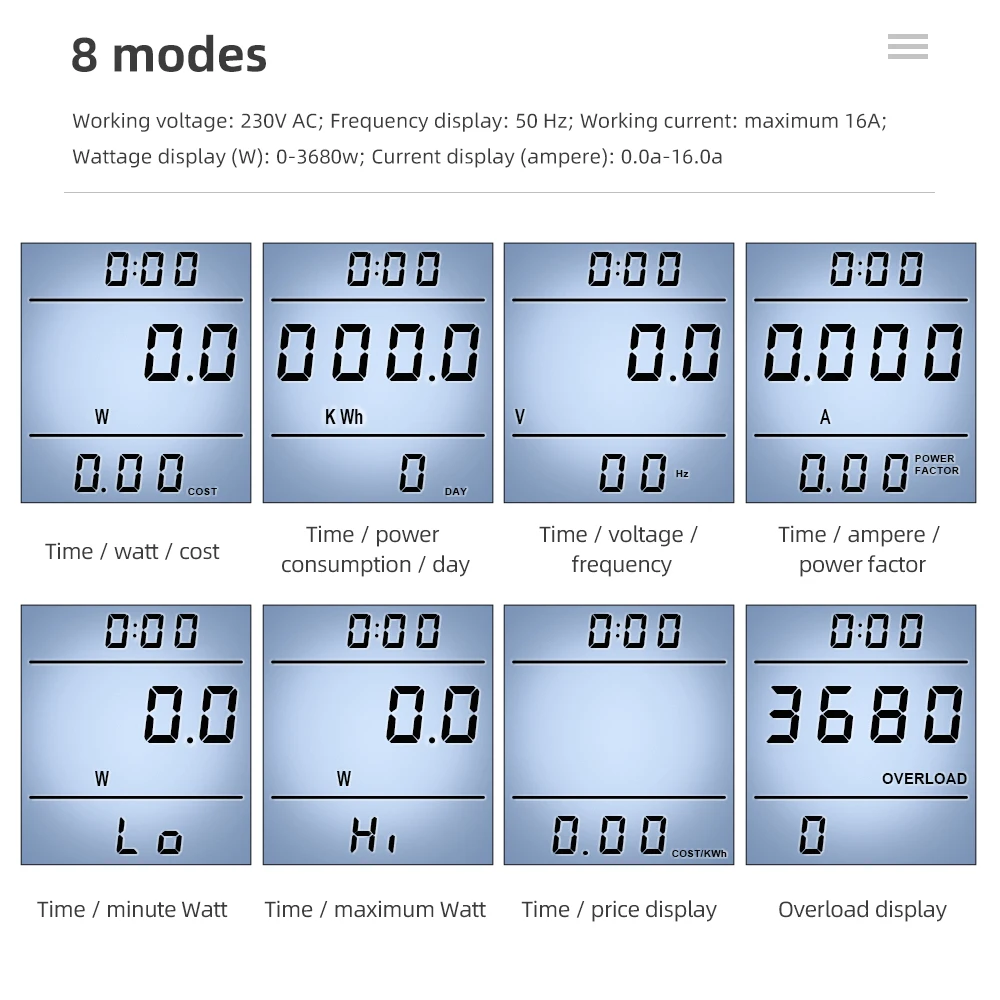

Seven display modes, transferred by pressing "FUNCTION" button.
Overload warning displayed on LCD.
Resetting for abnormal display or no-response of button.
1.Power Meter is a monitoring and testing instrument which determines the power consumption of a connected appliance and the cost of the electricity consumed.

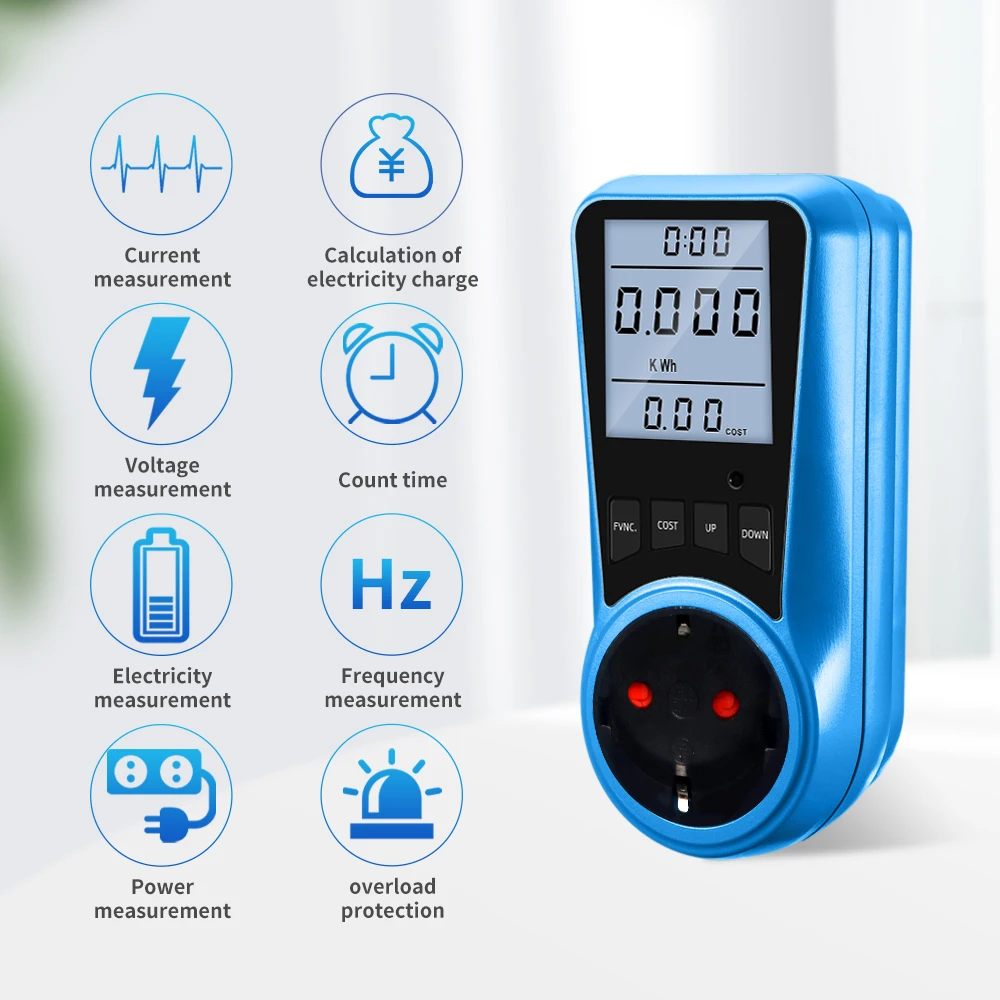

2.Measure Voltage, Frequency, Current, Power Factor, Wattage, minimum & maximum Wattage and record cumulative Kilowatt-hour KWh, Time, Date and Electricity Expenses.
Model:KWE-PMB05
Operating voltage: 230V 50Hz for EU / UK / AU / BR / IT / FR plug, 120V 60Hz for US plug
Operating current: Max 16A
Wide voltage range: 230V – 250V for EU / UK / AU / BR / IT / FR plug, 110V – 130V for US plug
Timing display range: 0 second—-9999 days
Wattage display (watts): 0W—-3680W / 0W-1800W (US)
Voltage display range: 0V—-9999V
Current display (amps): 0.0—-16.0A
Frequency display: 0Hz—-9999Hz
Minimum wattage display range: 0.0W—-3680W
Maximum wattage display range: 0.0W—-3680W
Price display range: 0.000KWH—-99.99KWH
Total kilowatt-hour and cost display: 0.000KWH—-9999KWH
DIY supplies: electric

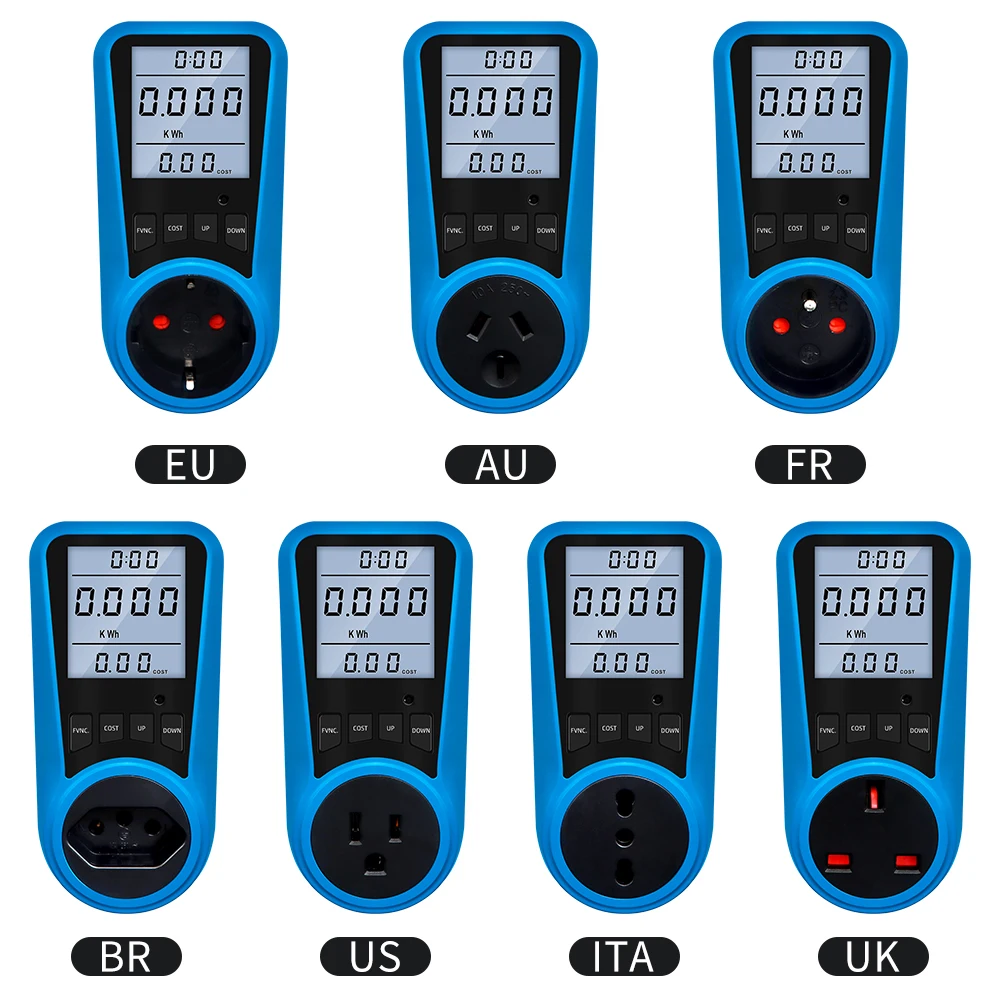

Plug: EU plug / US plug / UK plug / AU plug/FR plug/BR plug/IT plug(optional)
Color: blue
Item Size: 62X76X129mm
Package size: 82X65X145mm/3.23 x2.56 x5.71 in
Package weight: 180g /6.34oz
1 * Plug-in Power meter (Plug type accoring your order)
1* English Instruction manual
