DC 0-200V Voltmeter Ammeter KWS Power Energy Meter LED Digital DC Wattmeter Electric Meter with Reset Function 0-100A

DC 0-200V Voltmeter Ammeter KWS Power Energy Meter LED Digital DC Wattmeter Electric Meter with Reset Function 0-100A

Note

1. There are two models of KWS DC200 and KWS DC100 on the link. Please confirm the model you purchased before purchasing.

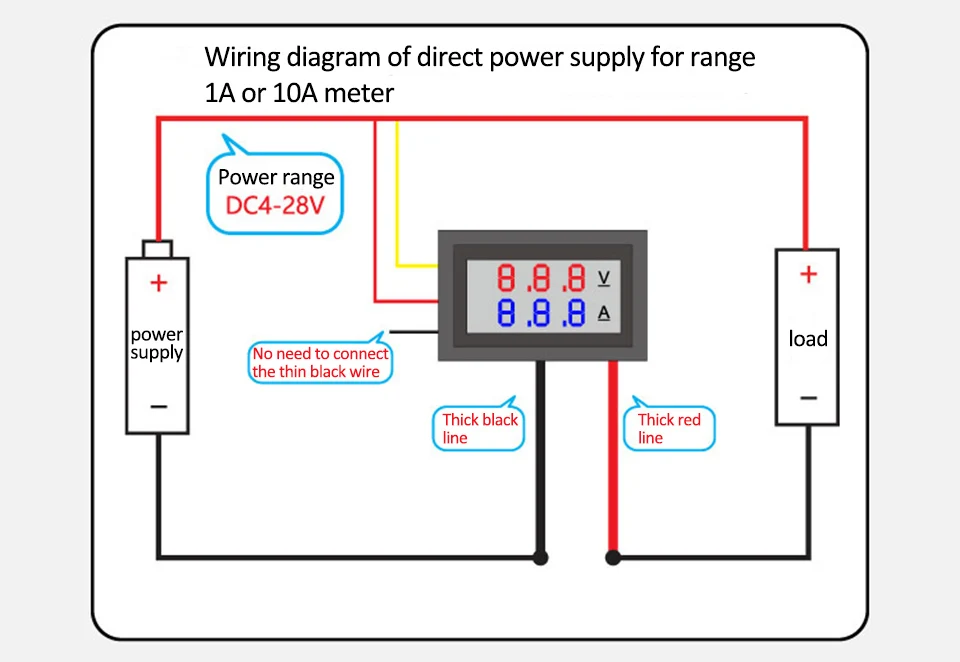

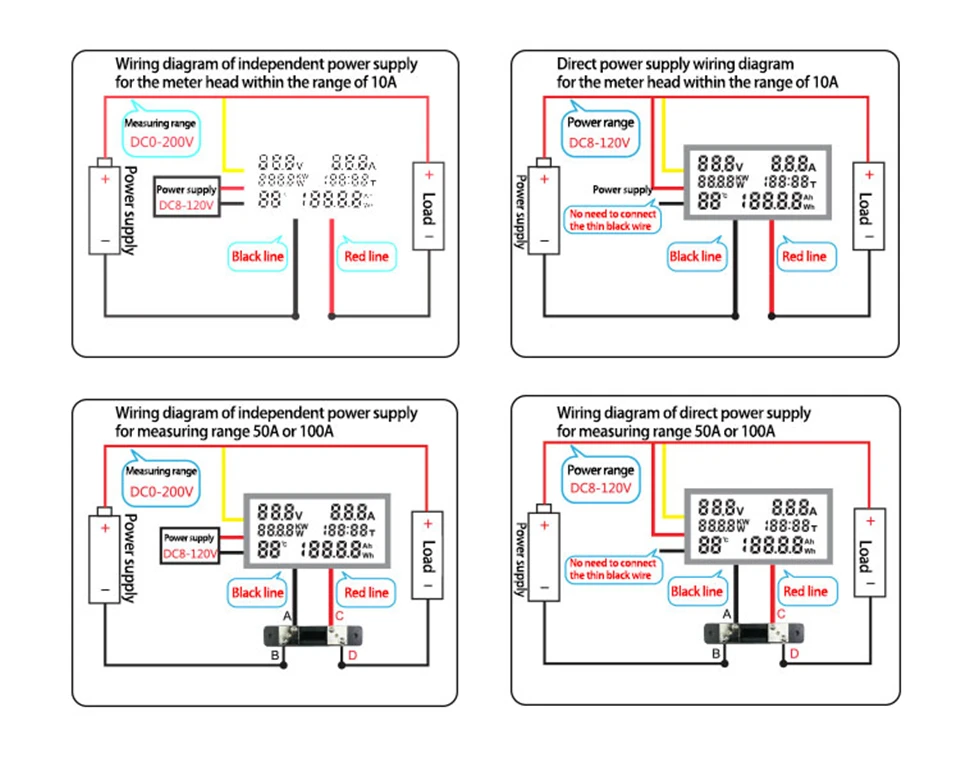

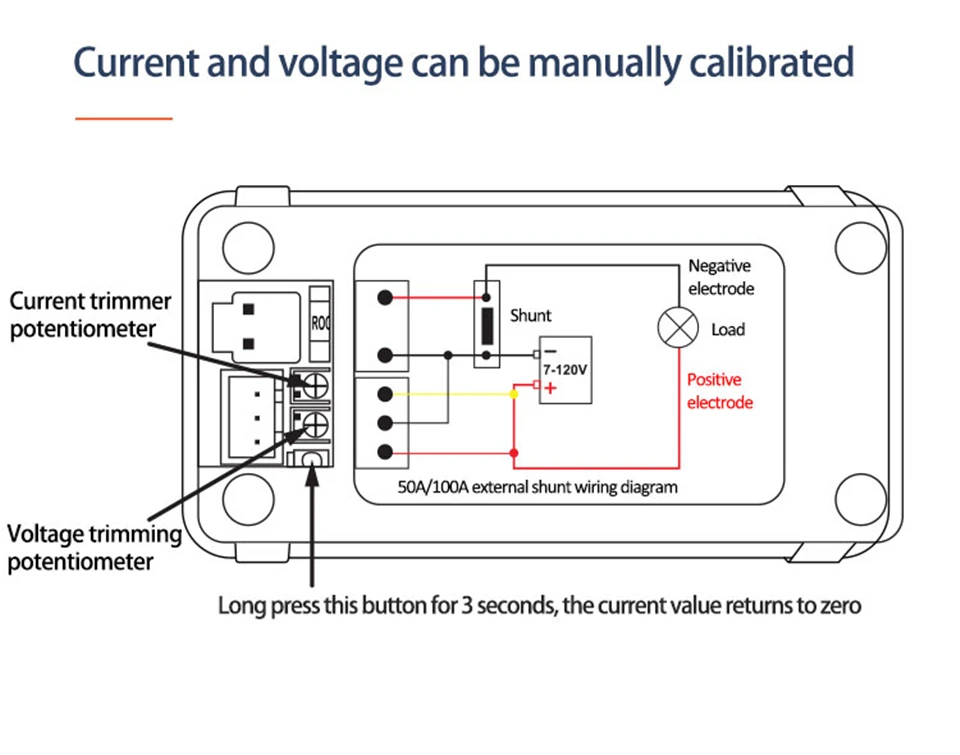

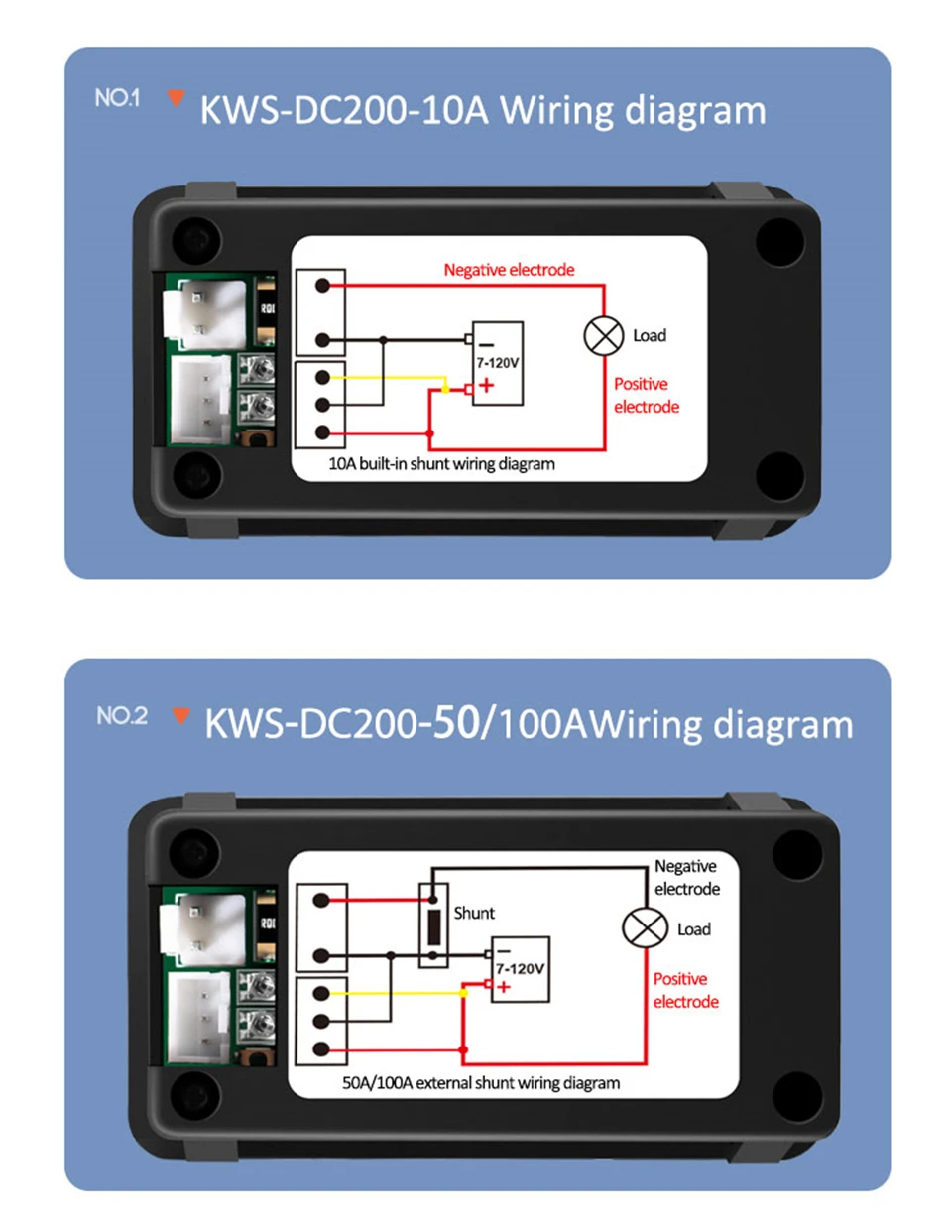

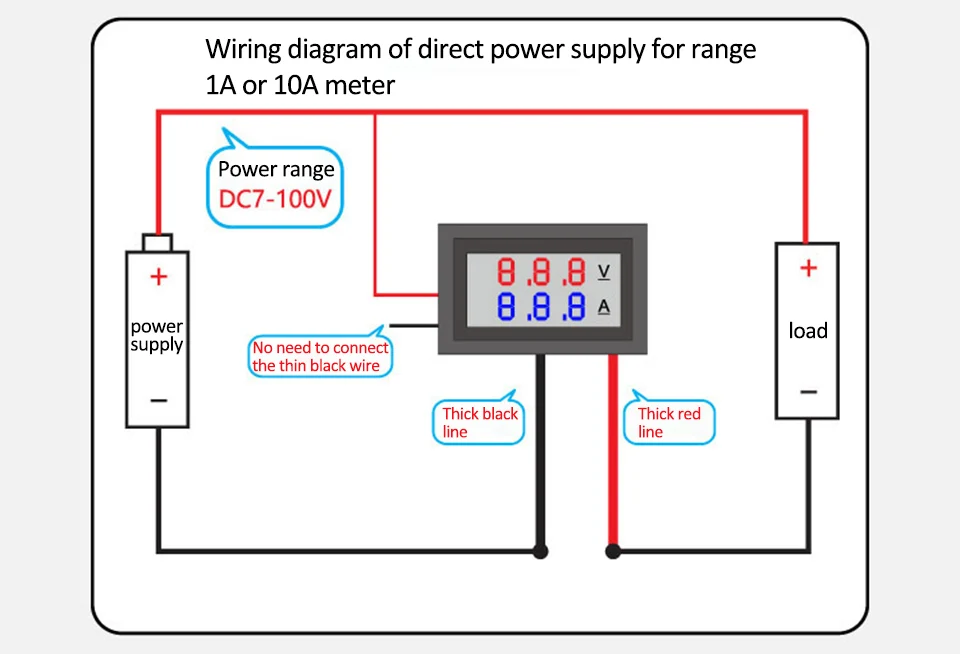

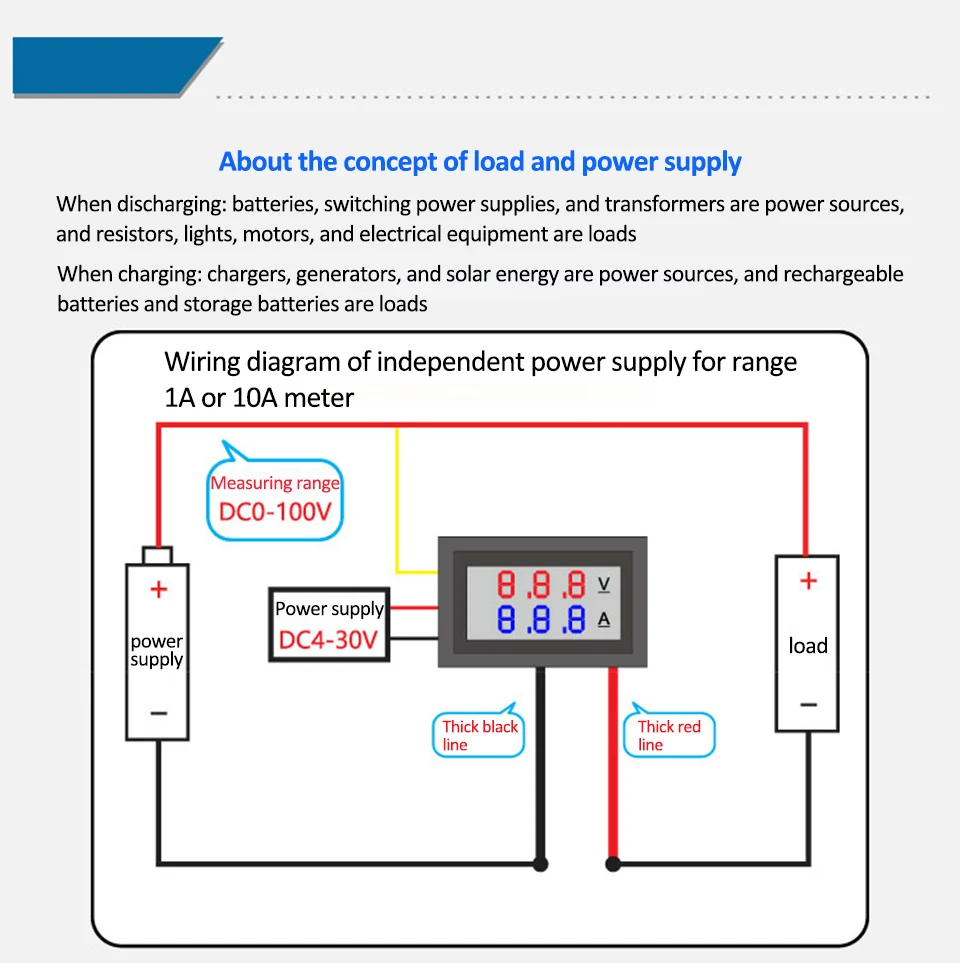

2. Please strictly follow the correct wiring diagram, our product link and manual have wiring diagrams.

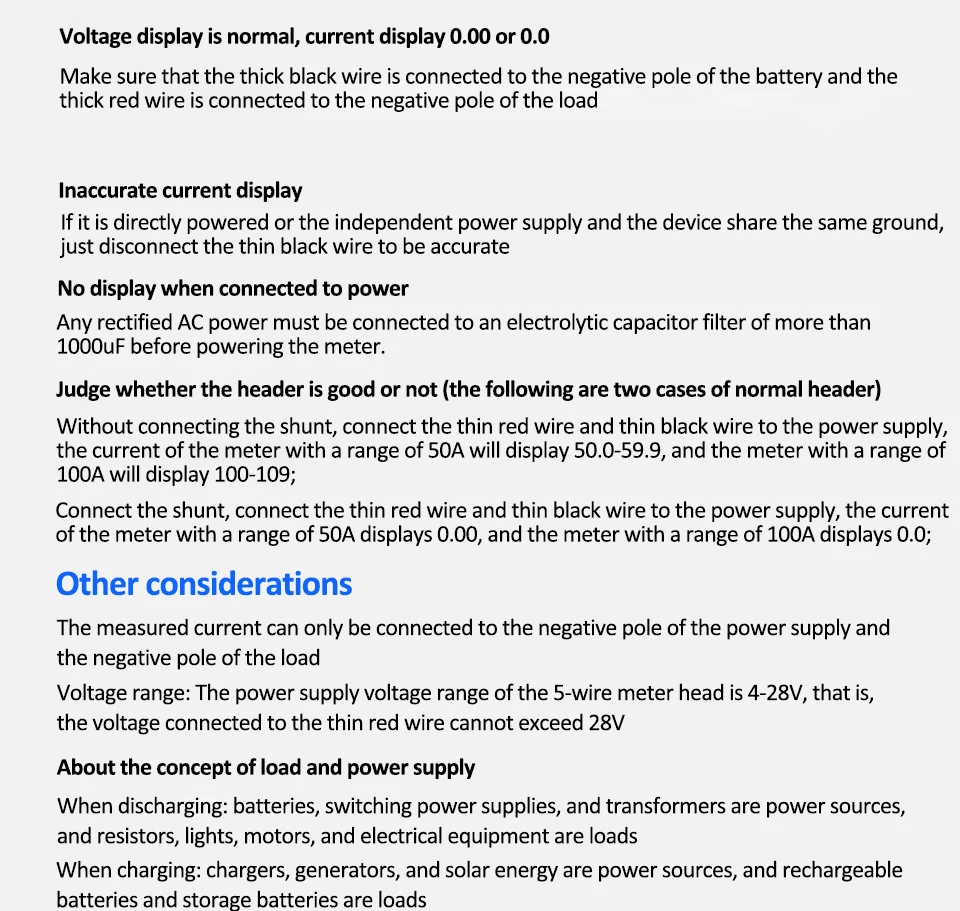

3.The product red, yellow and black thin wire can not be connected at the same time, the wrong connection will burn the machine

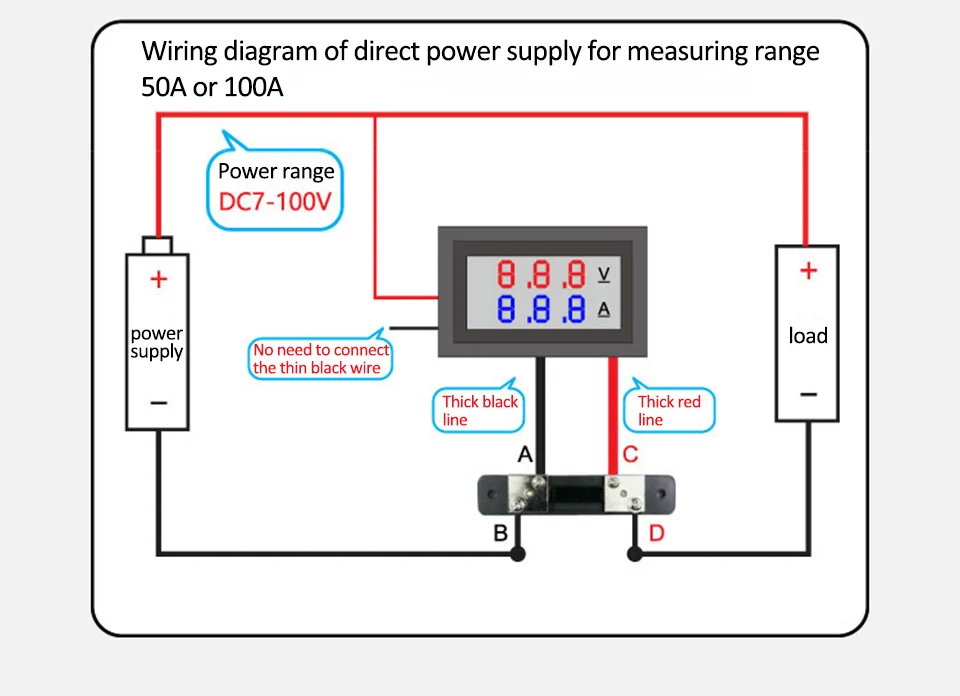

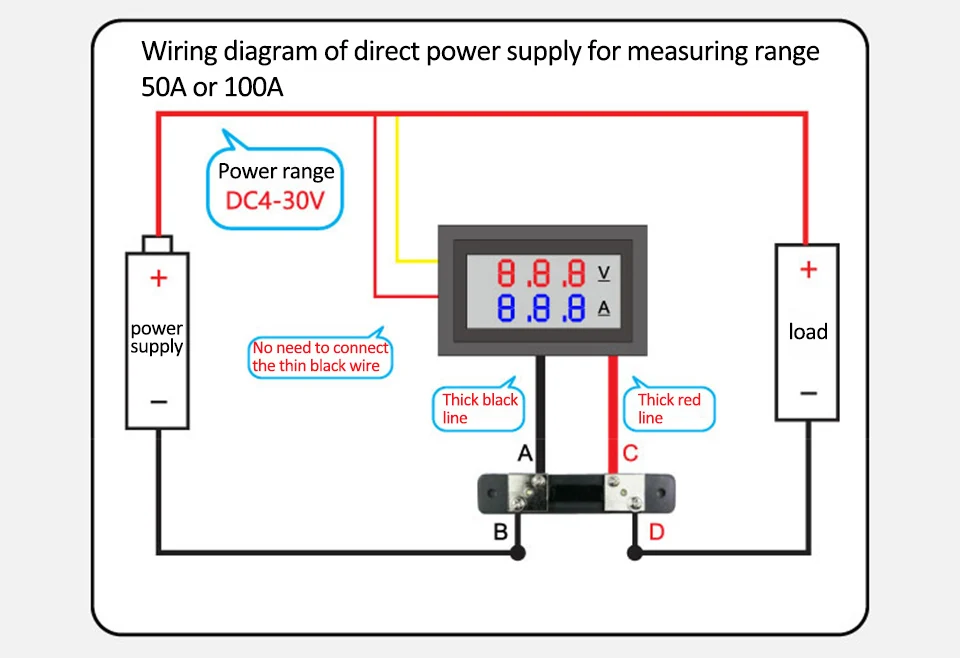

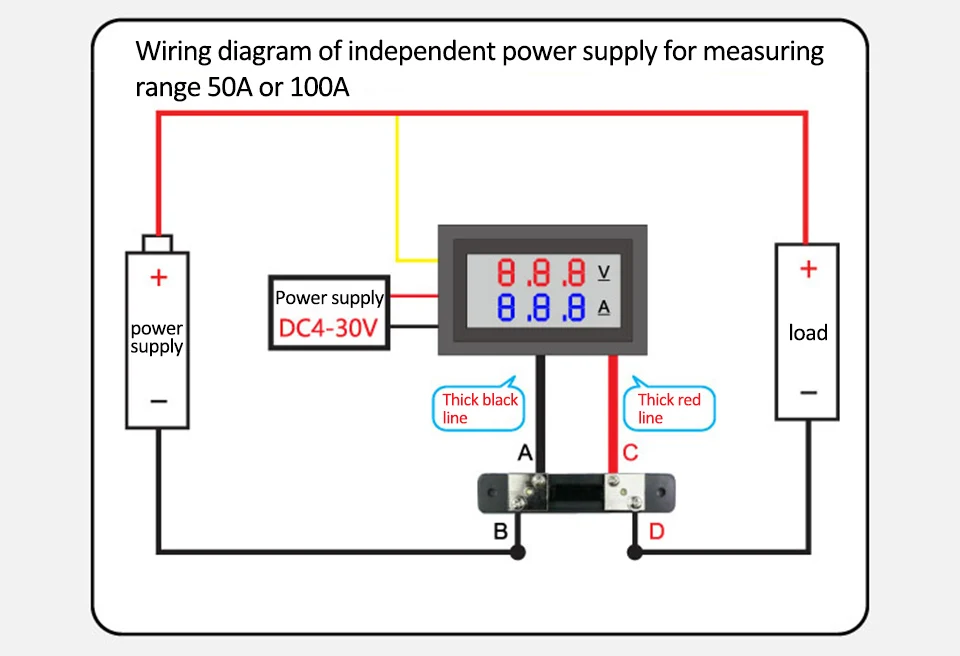

Fine line wiring rules, separate power supply lines connected to red and black, shared power lines connected to yellow and red. Three lines are not connected at the same time!

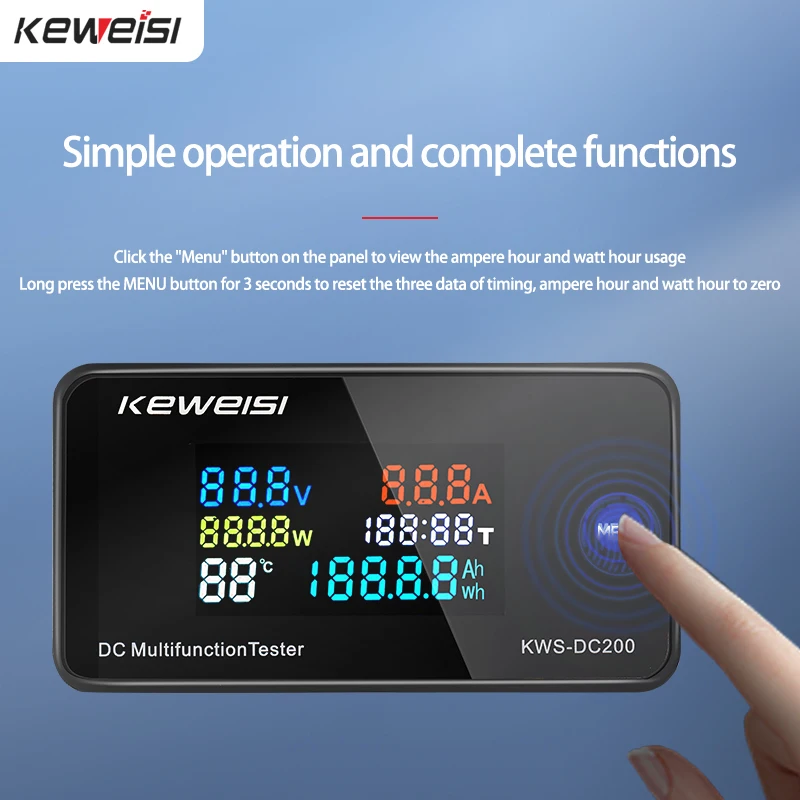

KWS DC200

Feature:

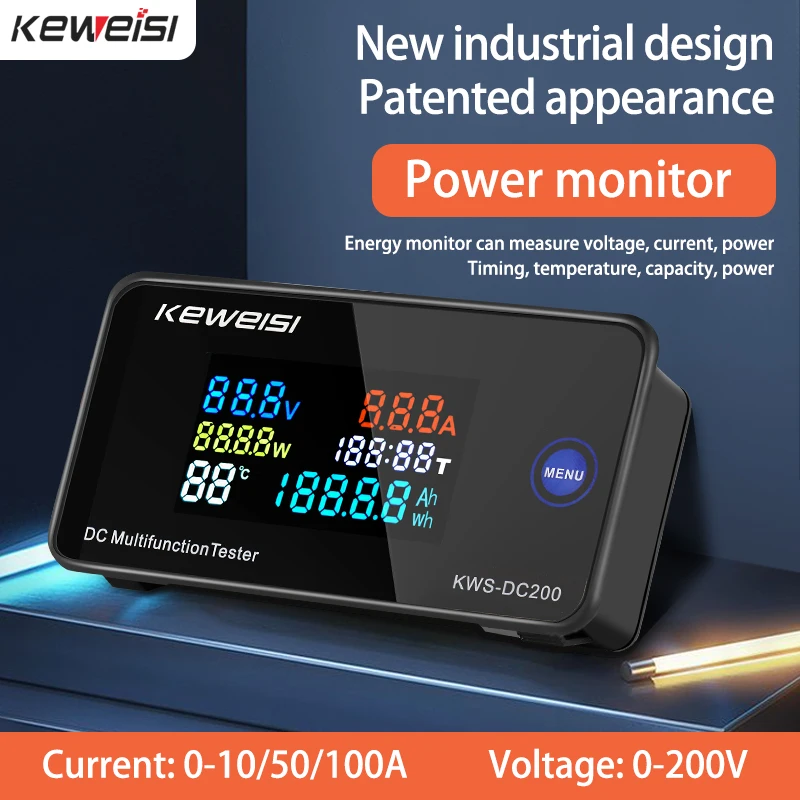

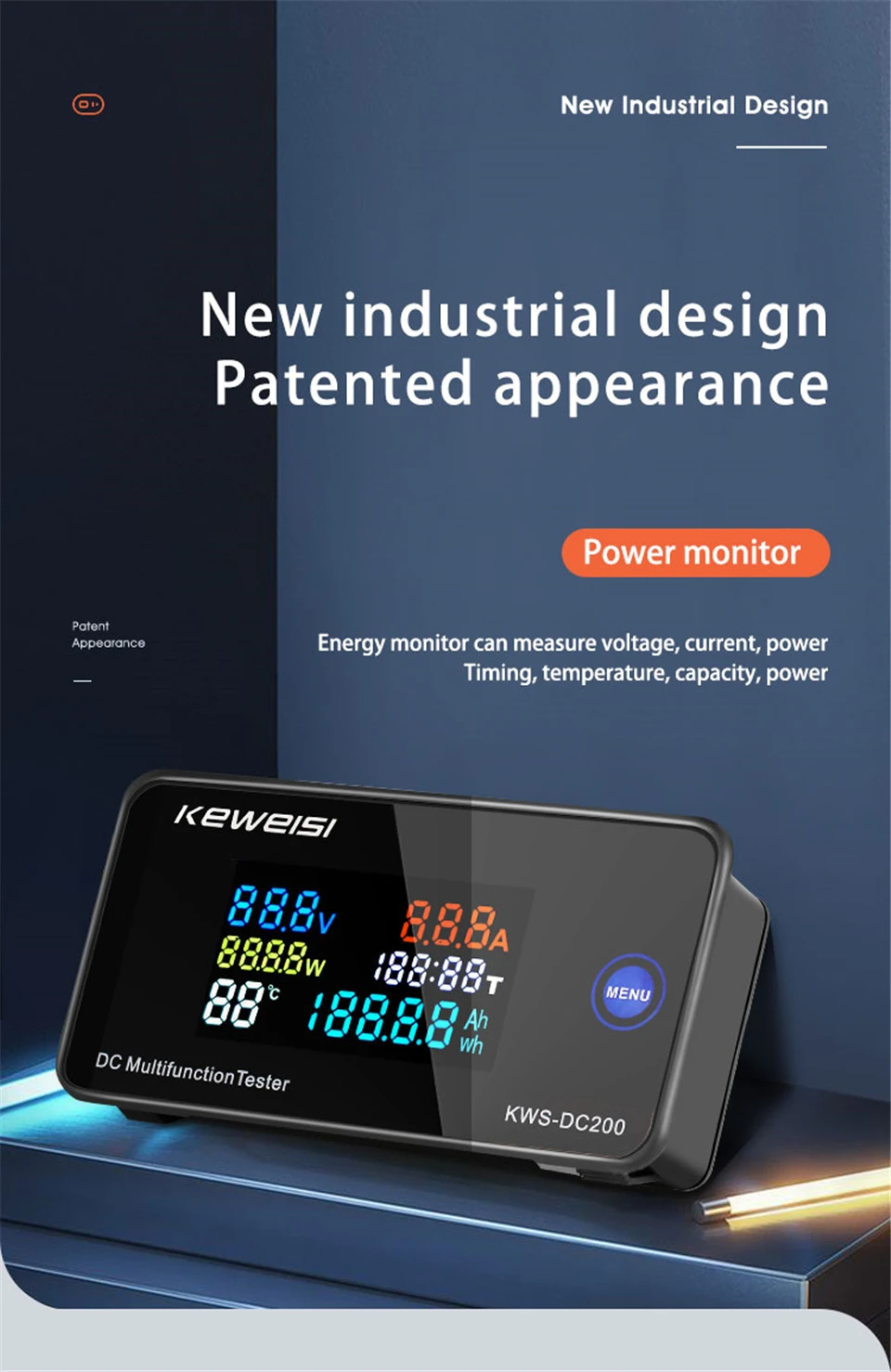

1.New Industrial Design.

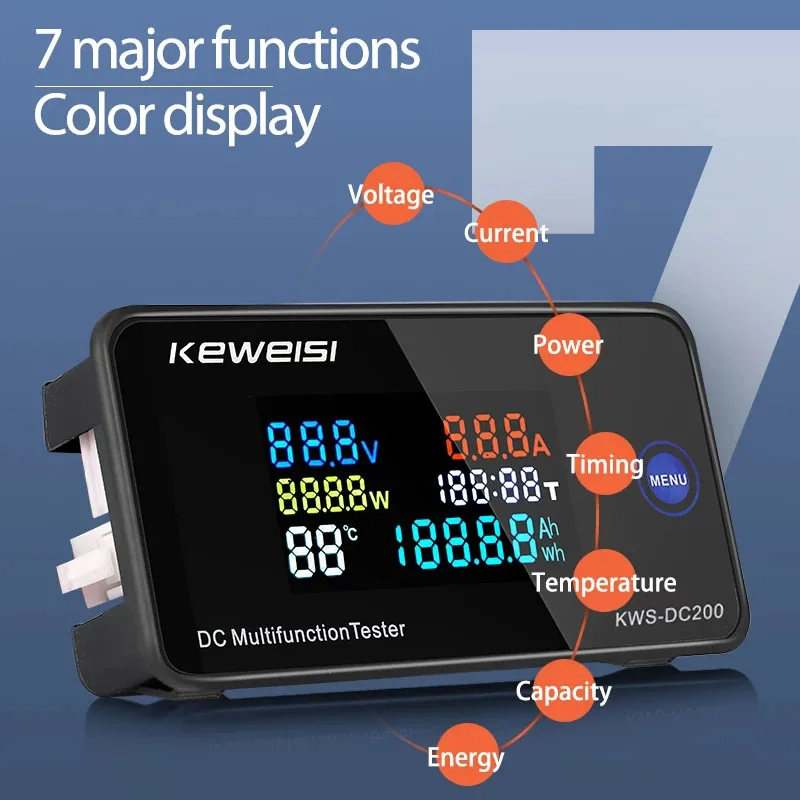

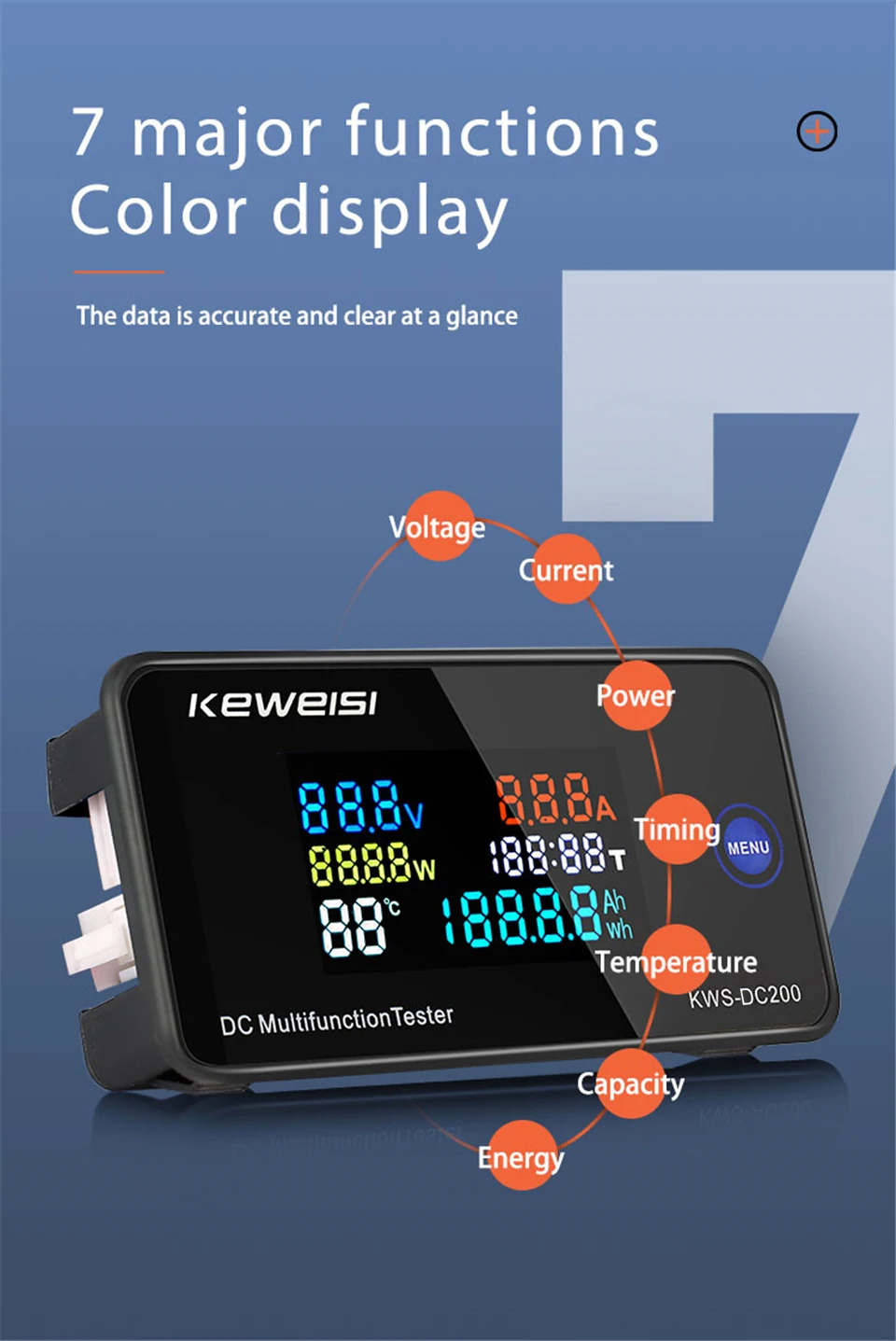

2.Seven Function: it can measure voltage, current, power, timing, temperature, capacity, electricity.

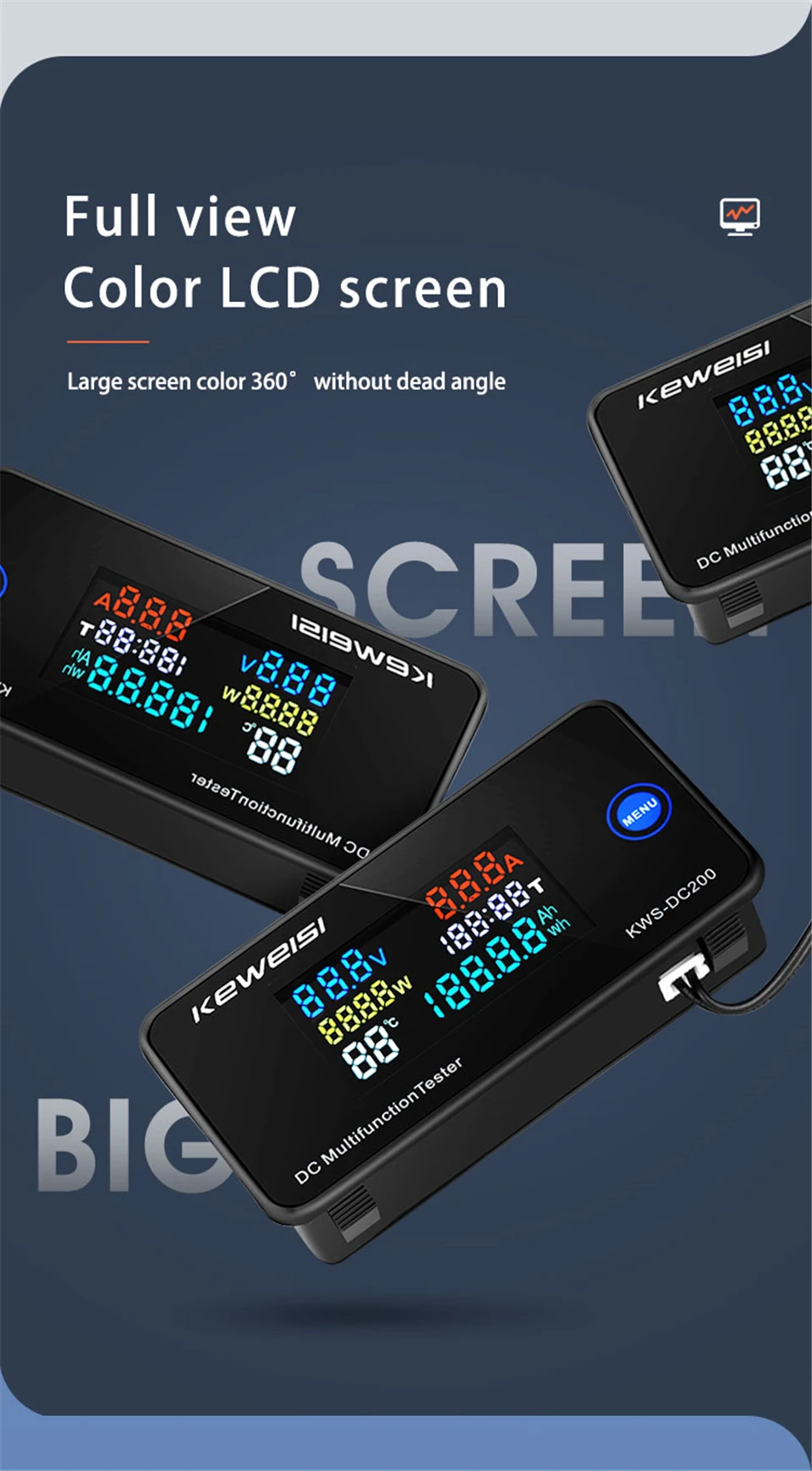

3.Color Screen.

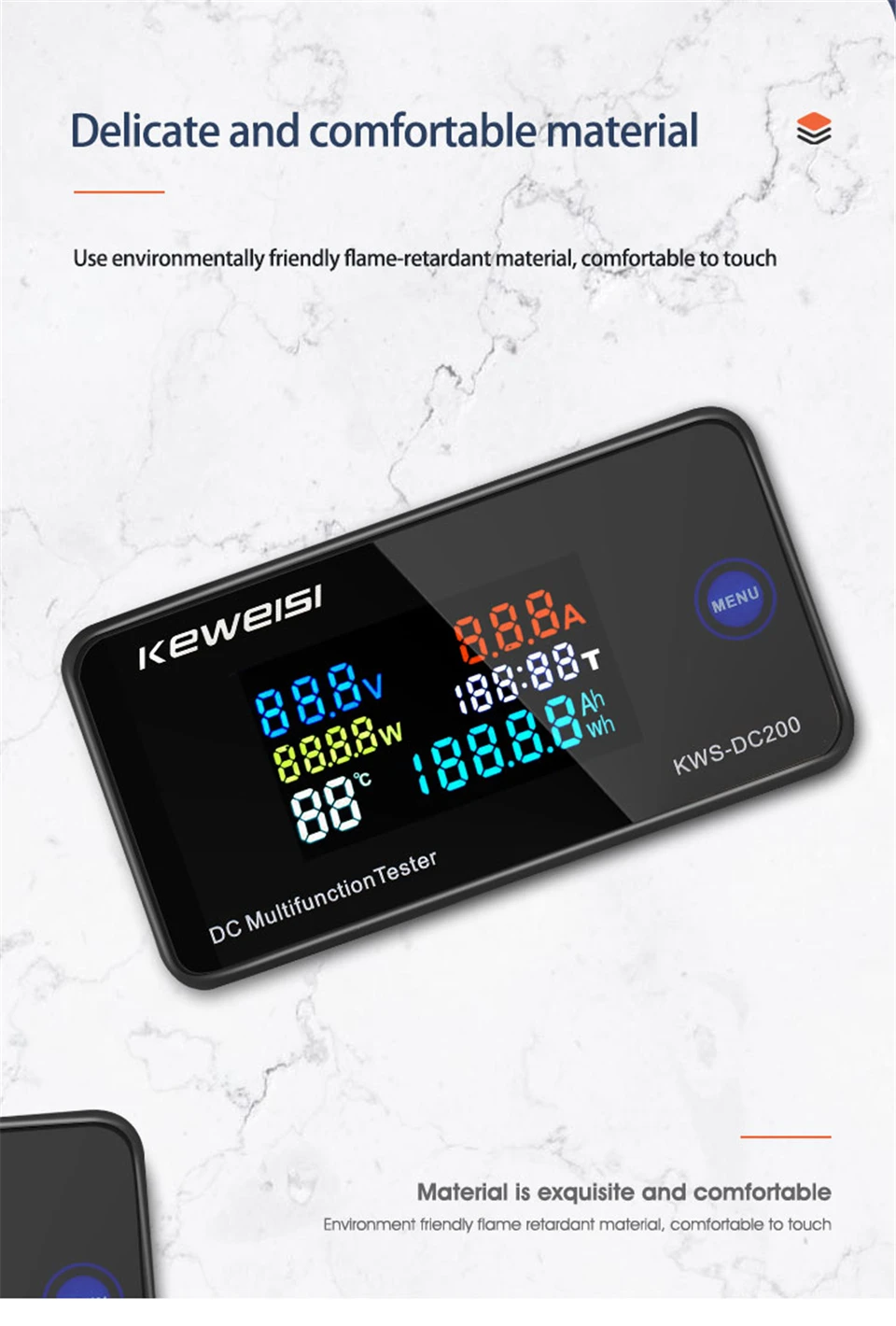

4.Material is exquisite and comfortable.Environment friendly flame retardant material,comfortable to touch.

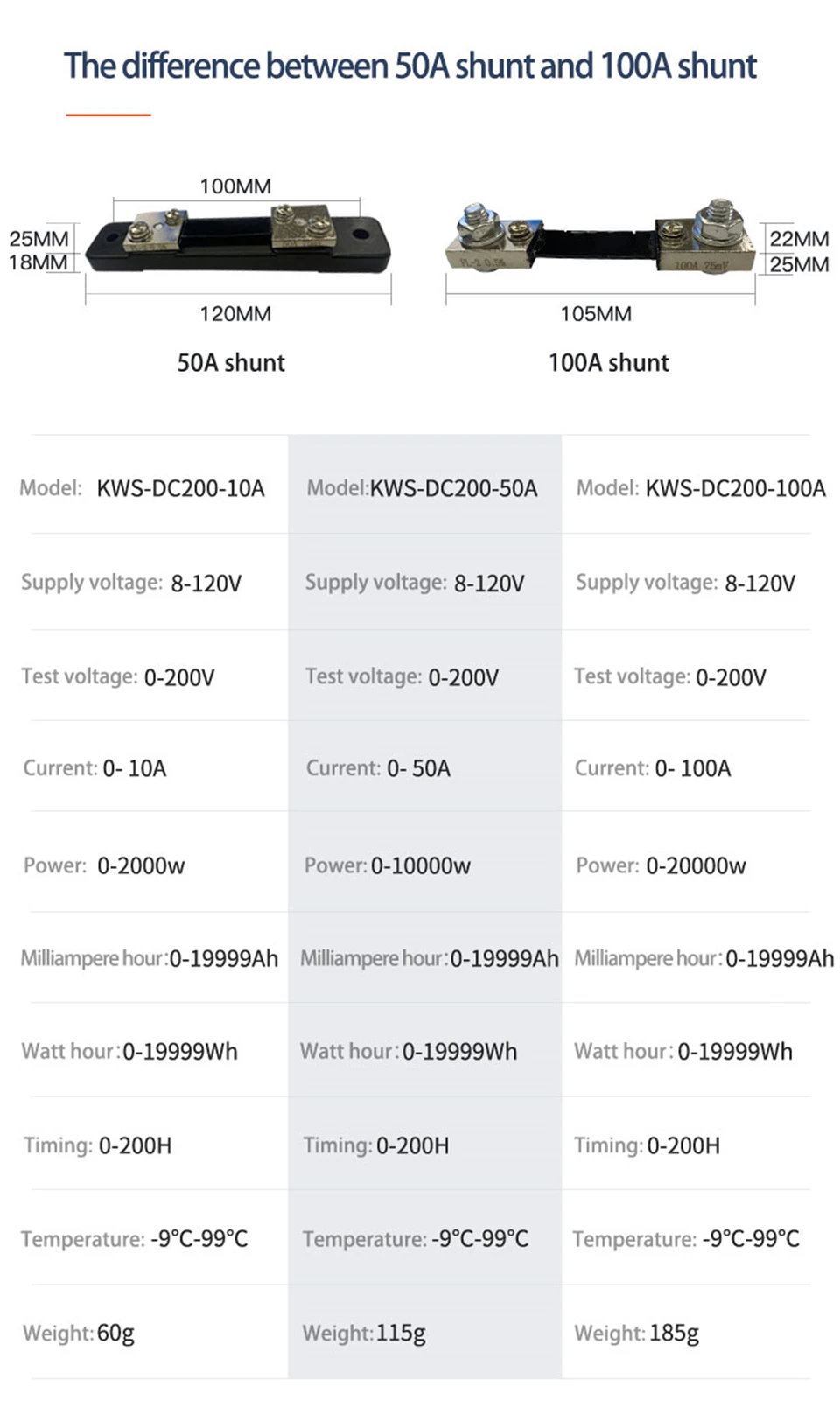

Specification:
Model: DC200-10A
Supply voltage: 8-120V
Test voltage: 0-200V
Current 0- 10A
Power: 0-2000w
Miliampere hour:0-199999
Watt hour:0-19999Wh
Timing: 0-200H
Temperature: -9C-99C
Weight:60g

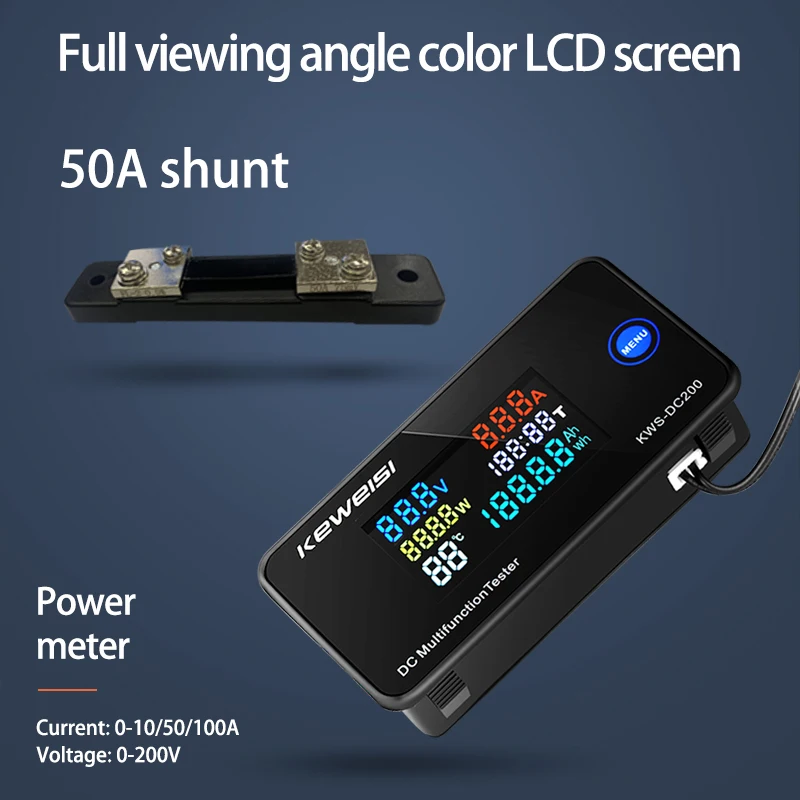

Model: DC200-50A
Supply voltage: 8-120V
Test voltage: 0-200V
Current: 0- 50A
Power.0-10000w
Miliampere hour:0-199999
Watt hour:0-19999Wh
Timing: 0-200H
Temperature: -9C-99C
Weight:115g

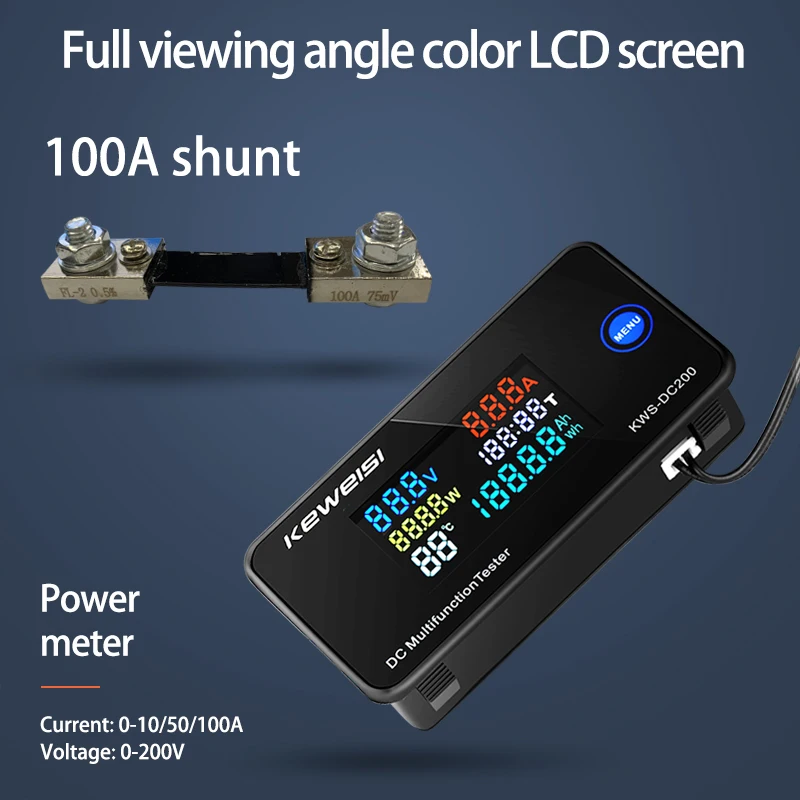

Model: DC200-100A
Supply voltage: 8-120V
Test voltage: 0-200V
Current: 0- 100A
Power.0-20000w
Miliampere hour 0-199999
Watt hour:0-19999Wh
Timing: 0-200H
Temperature: -9C-99C
Weight :185g

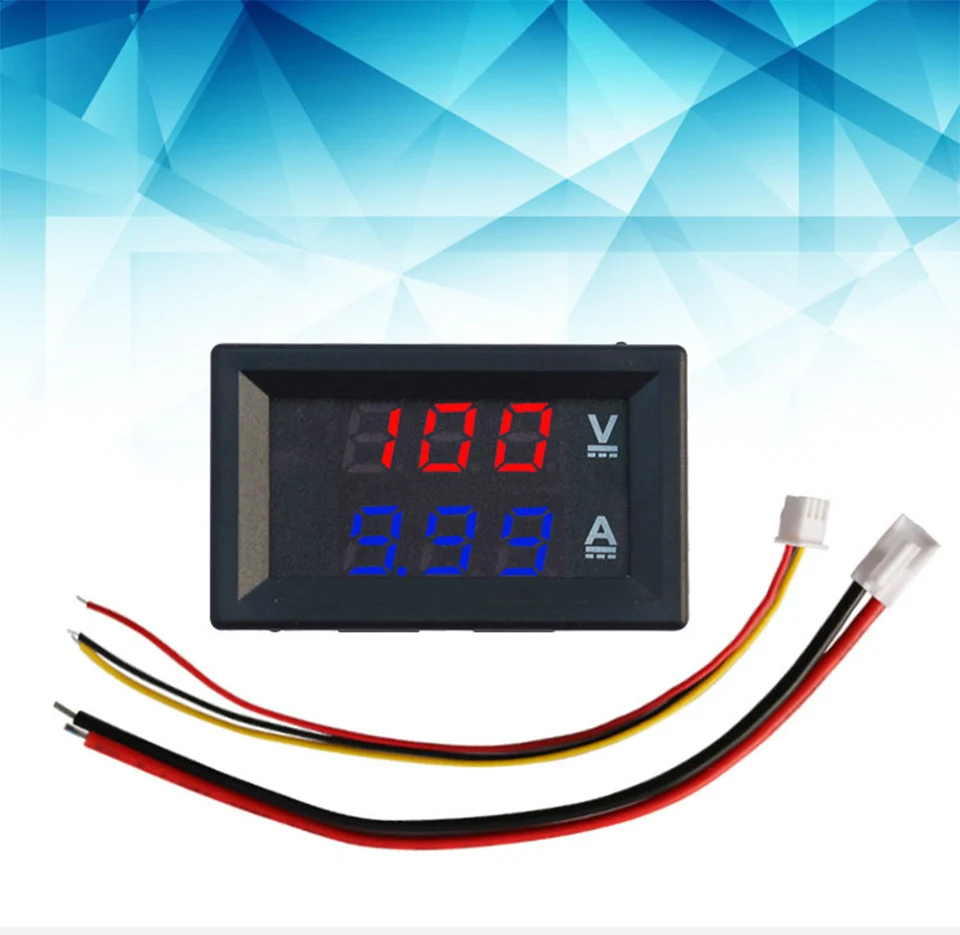

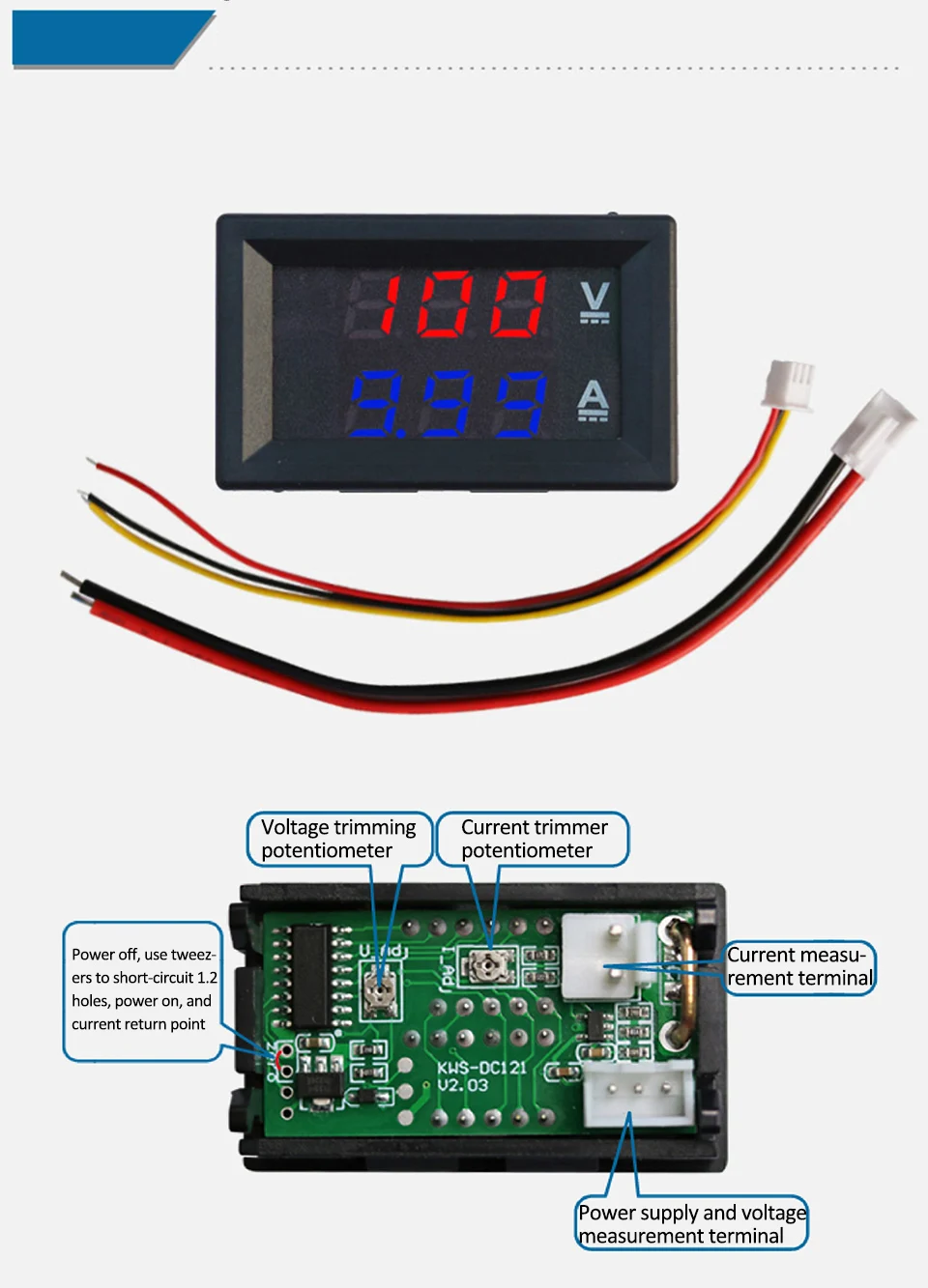

KWS DC100

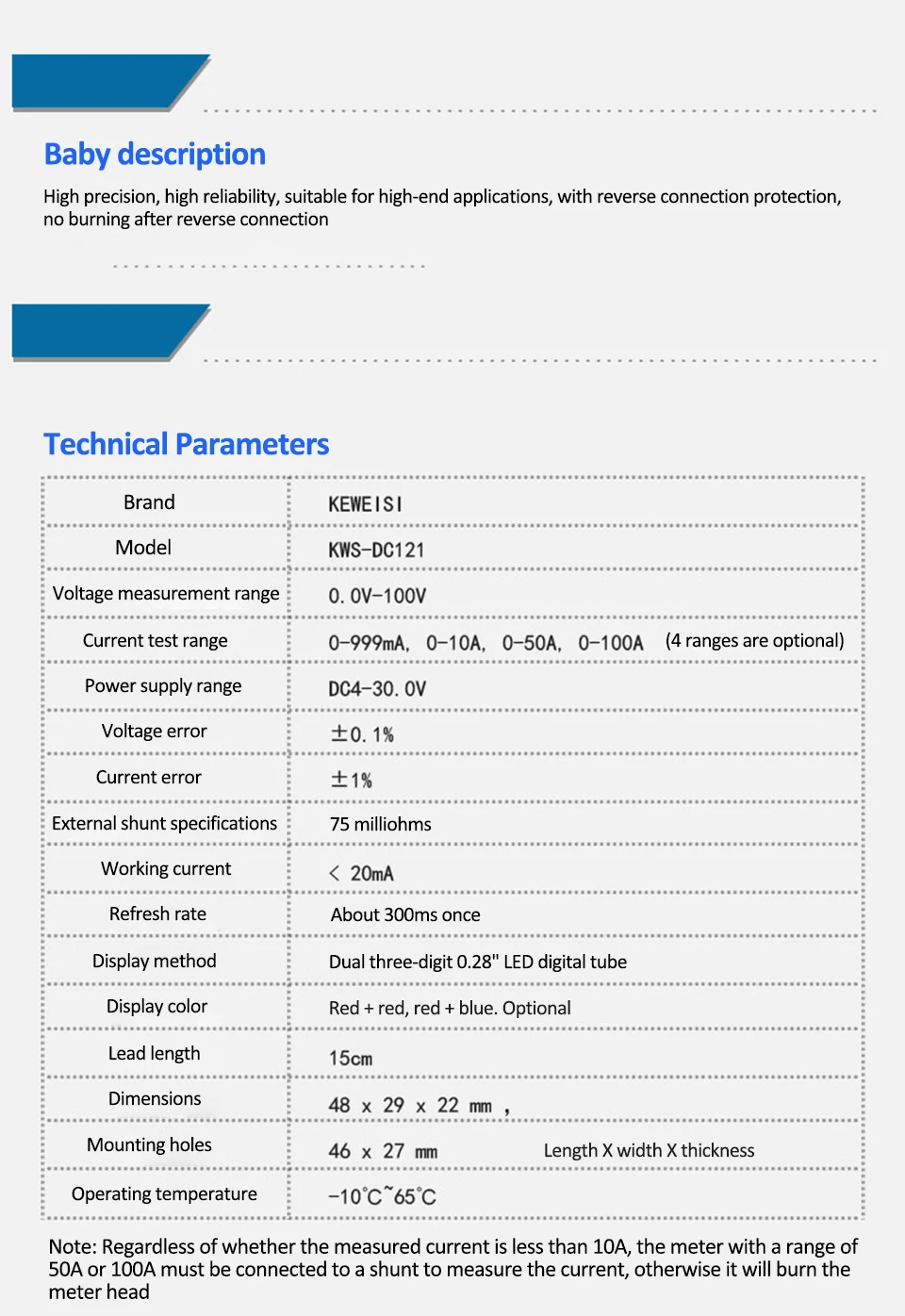

Specification:
Voltage measurement range:0.0V-100V
Current test range:0-10A,0-50A，0-100A（4 ranges are optional）
Power supply range:DC4-30.0V
Voltage error:0.1%
Current error:1%
External shunt specifications:75 milliohms
Working current<20mA
Refresh rate:About 300ms once
Display method:Dual three-digit 0.28"LED digital tube Display color:Red + red，red + blue.Optional
Lead length:15cm

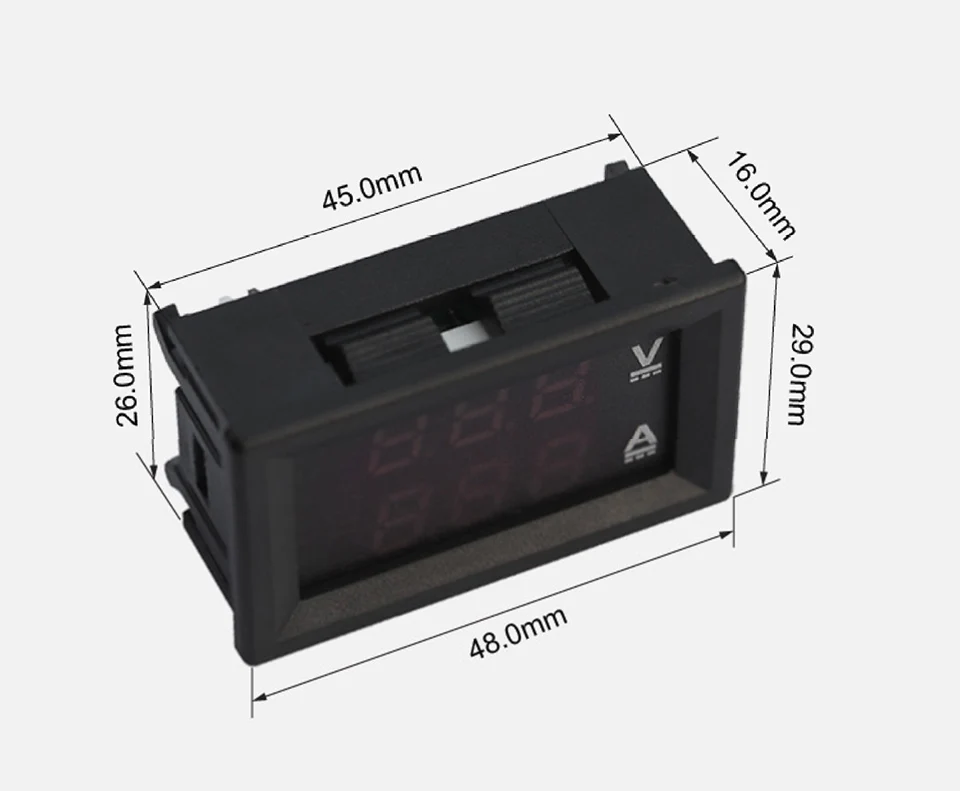

Dimensions:48 x 29 x 22 mm
Mounting holes:46 x 27 mm Length X width X thickness
Operating temperature:-10℃~65℃
