- Overall Length: 60 to 120mm
- Diameter: 8 to 50mm
- Model Number: t slot cutter
- Type: T-Slot Milling Cutters
- Material: High Speed Steel
- Brand Name: BB
- Origin: Mainland China
- Certification: NONE
- Hardness: 58 to 60 RC
- Shank Style: Straight Shank
Specifications
We offering a wide range of T Slot Milling Cutters to our valuable client in different specification to meet the diverse requirement of client. You can follow us and see more.
You have free choice of collocation, pick different specifications and other tools in our store to you cart and pay them together. We will send the products you have picked as a package.
-About 5 PCS Random
Usually choose 5 different length of cut according to the sheet below . Or you can leave us a message about what specifications you want.
We sincerely hope that BB tools will meet your full requirements. Please enjoy your online shopping.

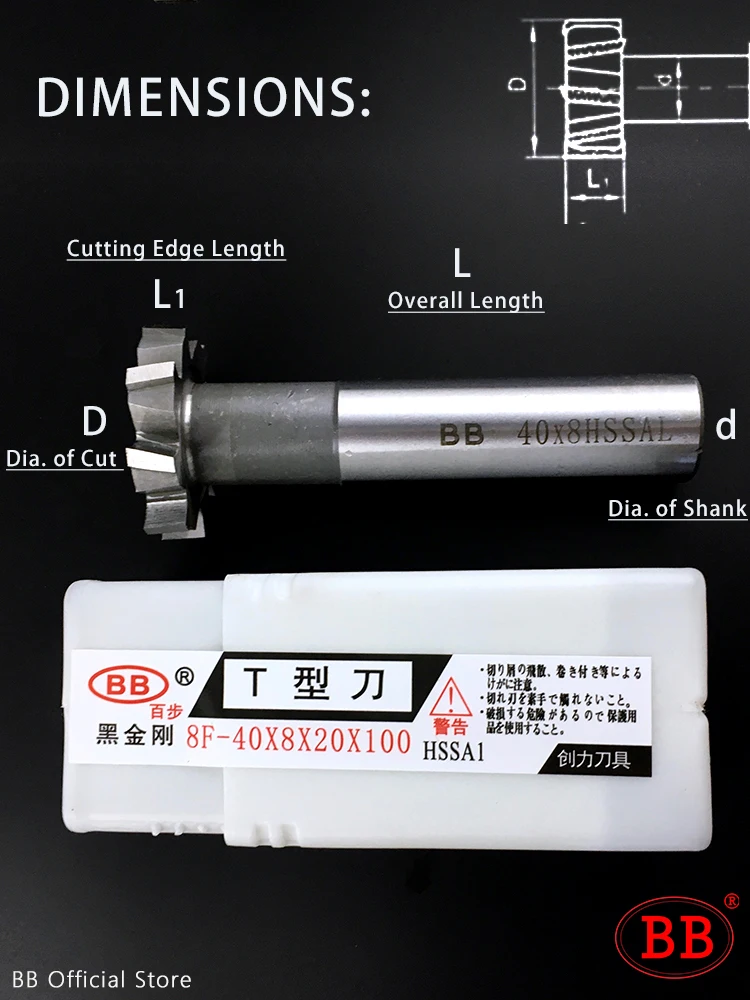

When the shank diameter is φ6~φ10, the diameter of neck is generally about 1mm smaller;
Shank Dia. φ 12,——about 2mm smaller;
φ 16—–about 3mm smaller;
φ 20—– about 4mm smaller.
There will be some difference between different specifications.
Details about BB T-slot cutter

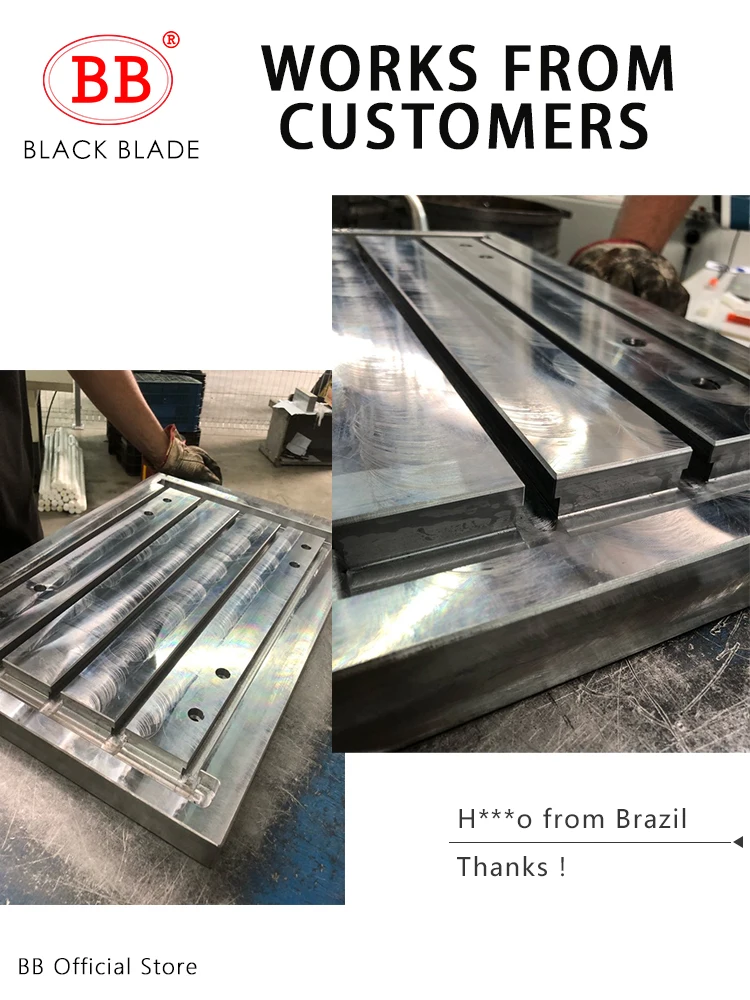

-Usually for milling T-slots in the tables and beds of machine tools and similar applications.
-The tools have staggered teeth when Dia. of cut ＞ 14mm.

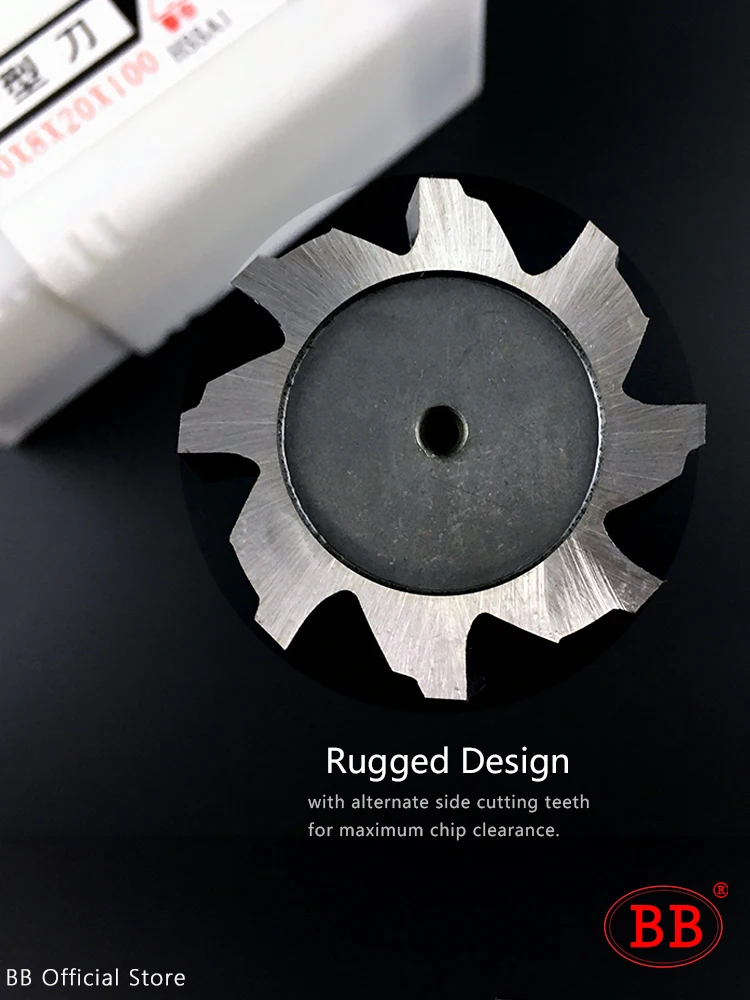

-A rugged design with free cutting features ,with alternate side cutting teeth for maximum chip clearance.
-High speed steel material, provide rapid chip removal. Used for milling low-carbon steel, aluminum, copper, iron and non ferrous materials, works well on aluminum.
Some attention about BB T-slot cutter
-Make sure the shank of the cutter is clamped on the collet properly. A vertical slot must be cut first, so that the neck and shank can enter the cut.
-High speed steel milling cutter is suitable for low speed and low feed processing.
-If the processed material is hard, please reduce the cutting depth and feed.
-If cutter burning, please also reduce the processing speed.Overheating of the tool will reduce the hardness of the tool, resulting in blade collapse.
CUTTING CONDITIONS
Customer Reviews(Thank You!)
BB® T-slot Milling Cutter Brazing with Carbide Insert
If you need to machine wood or hard metal materials, you can choose to brazing some inserts on T-slot milling cutter. This is relatively an economic choice. But be careful not to feed too fast.
You can click the picture below to view the product.
BB® Solid Carbide T-slot Cutter
If you need higher precision and higher processing speed, you can choose the milling cutter below and click the picture.
SHIPMENT
-We have already paid 80% of delivery cost.And free shipping for sometimes.
-Orders processed timely after the payment verification.We ship products within 3 working days.
-The trade is cross-border, and Airmail is cheapest post which take a long time for delivery.If you need the item urgently ,please choose Express way.
-If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get a reply to you as soon as possible.
About BB®
Chuangli Milling Tools Co.,Ltd. established in 2003 in Jiangsu Province, China. We are professional manufacturer ,development and production of milling tools.
Now we have 3 branch stores located in Jiangsu Province, Zhejiang Province, and Guizhou Province,China.Our tools have a variety of specifications, and appreciated in lots of different markets throughout the world.
