- DC Current: 999.9mA/10A
- AC Current: 999.9mA/10A
- DC Voltage: 999.9mV/9.999V/99.99V/999.9V
- AC Voltage: 999.9mV/9.999V/99.99V/999.9V
- Operating Mode: automatic
- Measuring Capacitance Range: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
- Measuring Resistance Range: 999.9/9.999k/99.99k/999.9k/9.999M/99.99M
- Model Number: 621A Multimeter
- Dimensions: —
- Operating Temperature: 0 – 40 ℃
- Measuring Inductance Range: 100Hz/1000Hz
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: ANENG
- Origin: Mainland China
- Certification: CE,NONE
- NCV: Yes
- AC/DC Voltage: Yes
- AC/DC Current: Yes
- Resistance: Yes
- diode: Yes
- Temperature: Yes
- Hz: Yes
- Zero fire line: Yes
- data retention: Yes
- Display(LCD): 9999 Counts

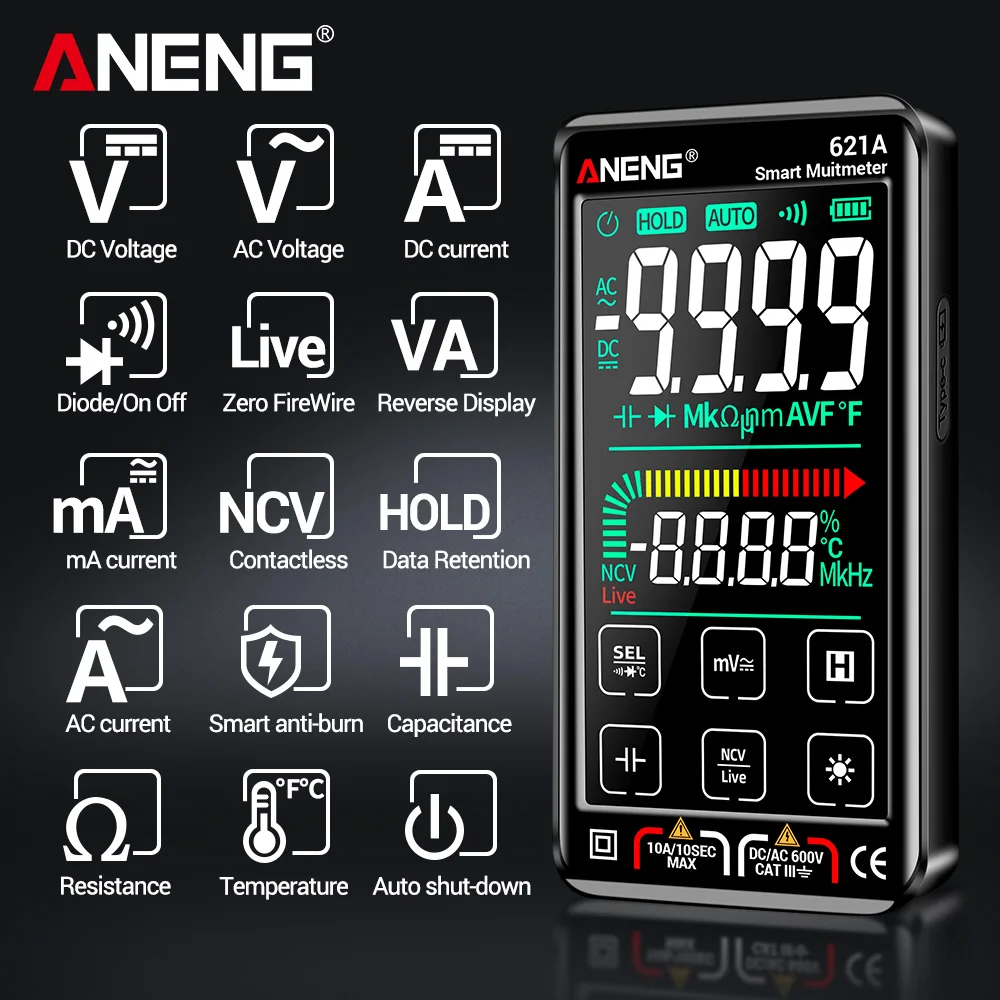

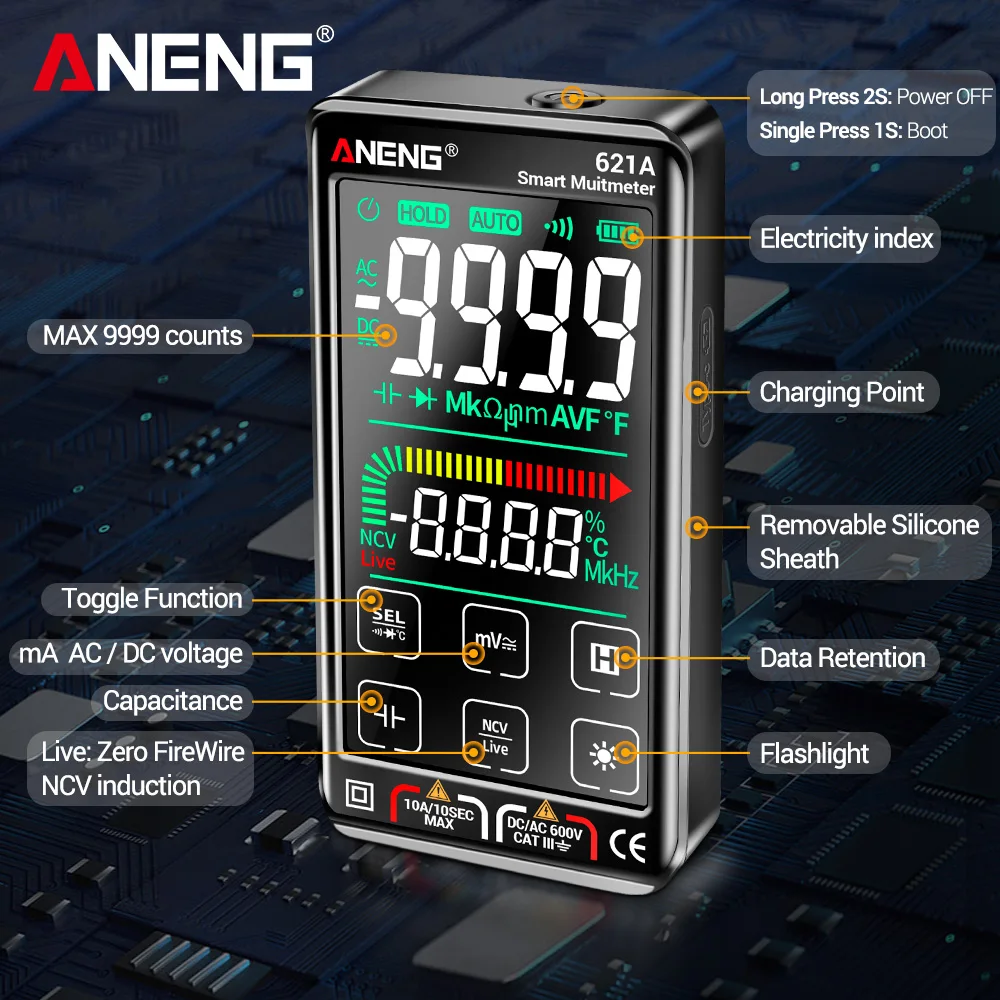

A.Overview:
Automatic selection of measurement functions and ranges.
Full-scale overload protection.
The maximum voltage allowed between the measuring terminal and the earth is 1000V DC or 750V AC
The maximum LCD display value is 9999 digits.
Polarity indication: Automatic indication, ‘－’ means negative polarity.
Overrange display: ‘OL’ or ‘-OL’ .
Sampling time about: 3 times / second
Auto shutdown time: 15 minutes

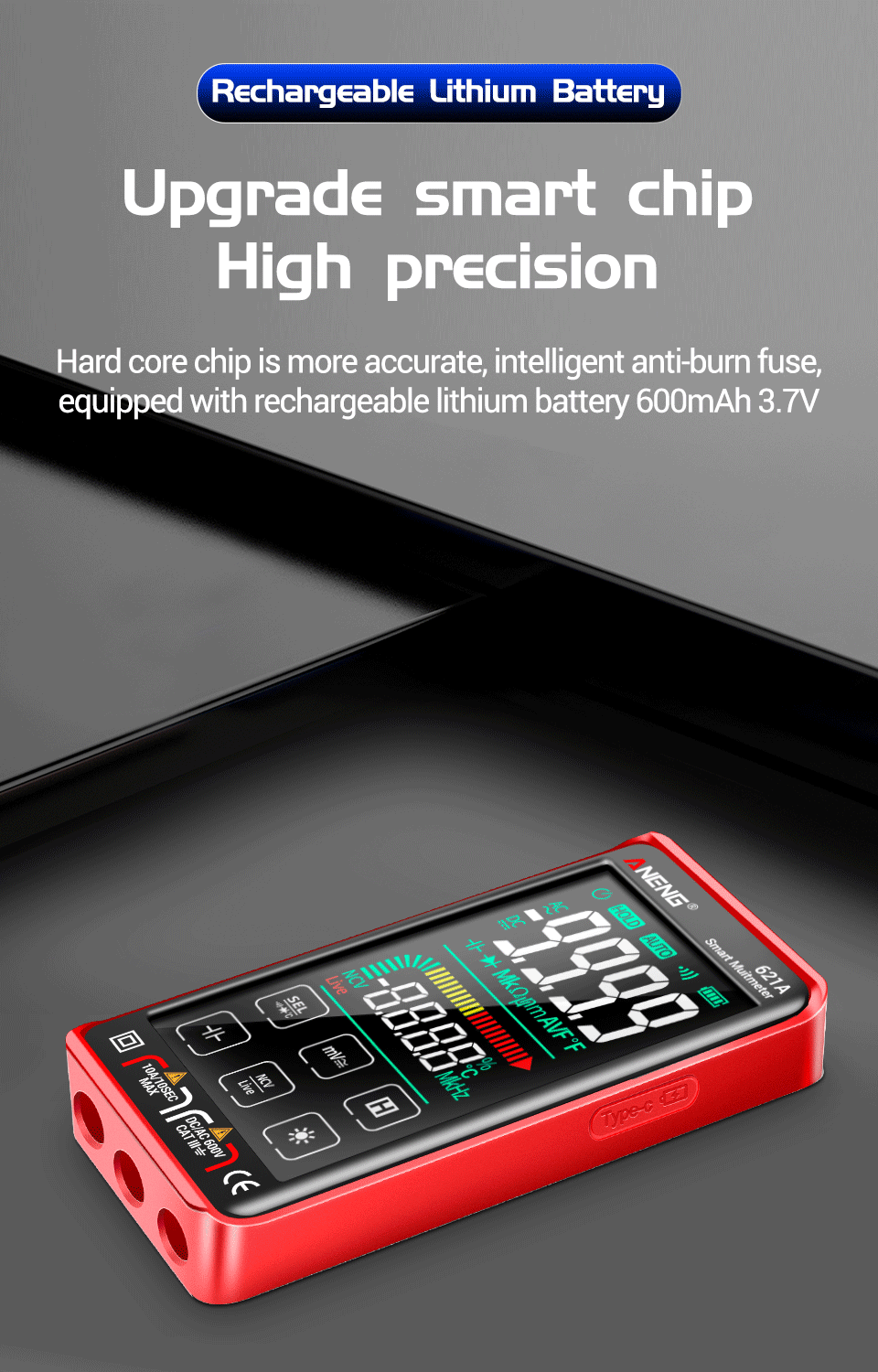

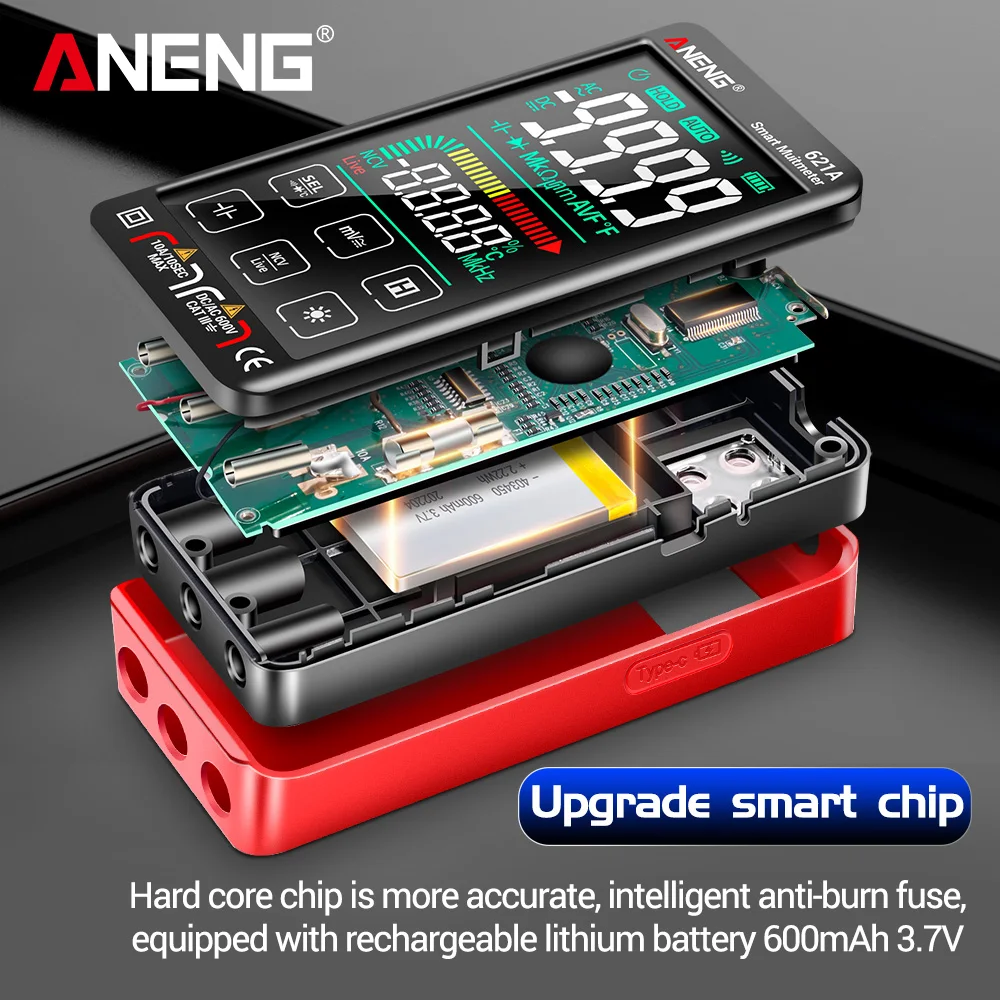

Power supply: 3.7V/600mAh lithium battery
Operating temperature: 0°c – 40°c
B.Specification:
|
Function |
Range |
Accuracy |
|
AC Current |
999.9mA/10A(Min 20mA/Max 10A) |
+-(1.0%reading+8 digits) |
|
DC Current |
999.9mA/10A(Min 20mA/Max 10A) |
+-(1.0%reading+5 digits) |
|
DC Voltage |
999.9mV/9.999V/99.99V/999.9V |
+-(0.5%reading+3 digits) |
|
AC Voltage |
999.9mV/9.999V/99.99V/999.9V |
+-(0.8%reading+5 digits) |
|
Line on-off Test |
— |
0.1Ω |
|
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
+-(0.8%reading+3 digits) |
|
Diode Test |
— |
1V |
|
Capacitor |
9.999nF |
+-(10%reading+40 digits) |
|
999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF |
+-(2.5%reading+20 digits) |
|
|
Temperature |
-40~1000℃ |
+-(1%reading+3℃) |
|
-40~1832℉ |
+-(1%reading+3℉) |
|
|
Frequency |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |
|
100Hz/1000Hz |
+-(1.0%reading+5 digits) |

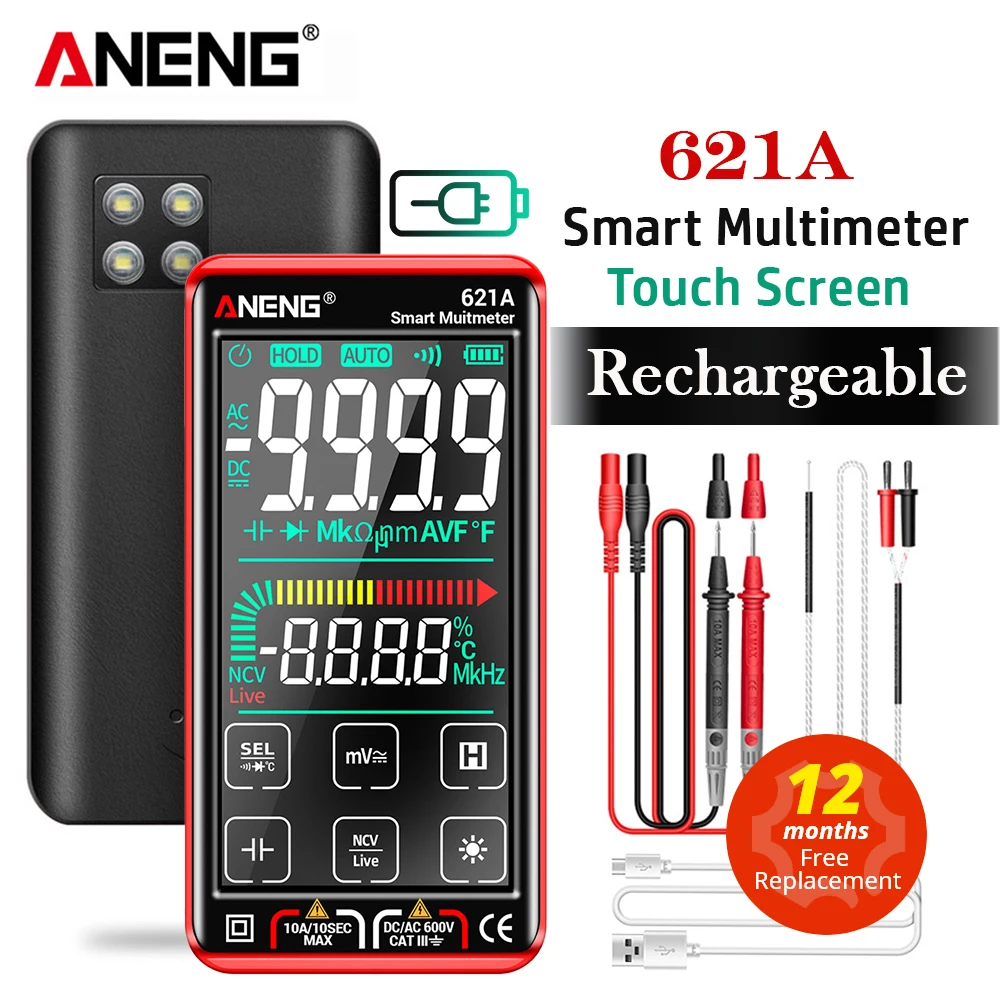

C.Package Include:
According to your choice
