- Warranty: 3years
- Area: 3-5㎡
- Is Smart Device: no
- Model Number: Angel eyes
- Luminous Flux: 2000 Lumens & Above
- LED Chip Model: 3014
- Color Temperature: Cool White(5500-7000K)
- Voltage: 12-14V DC
- Occasion: Living Room
- Power Tolerance: 10%
- Shape: Annular
- Length: other
- Average Life (hrs): 20000
- Led Bulb Type: Car Bulb
- LED Chip Brand: Epistar
- Beam Angle(°): 120°
- Base Type: welding
- Certification: CCC,ROHS,ce,FCC
- Brand Name: sumbulbs
- Origin: Mainland China
- Item Type: LED Bulbs
- Product name: angel eyes ring led light source
- Size 20mm: 2W 12V 200mA(MAX)
- Size 30mm: 3W 12V 300mA(MAX)
- Size 40mm: 4W 12V 400mA(MAX)
- Size 50mm: 5W 12V 500mA(MAX)
- Size 60mm: 6W 12V 600mA(MAX)
- Size 70mm: 7W 12V 700mA(MAX)
- Size 80mm: 8W 12V 800mA(MAX)
- Size 90mm: 9W 12V 900mA(MAX)
- Size 100mm: 10W 12V 1000mA(MAX)
- Size 110mm: 11W 12V 1100mA(MAX)
- Size 120mm: 12W 12V 1200mA(MAX)
- Material: Aluminum-alloy & Silicone rubber
- Luminous efficacy: >100LM/W
- Warm white: 2800-3200K
- Cold white: 6300-6700K
- Notice: Please add heatsink
2W-12W angel eyes led cob light source annual shape 12V DC 20mm-120mm cob ring led cold warm white light source for diy bulb

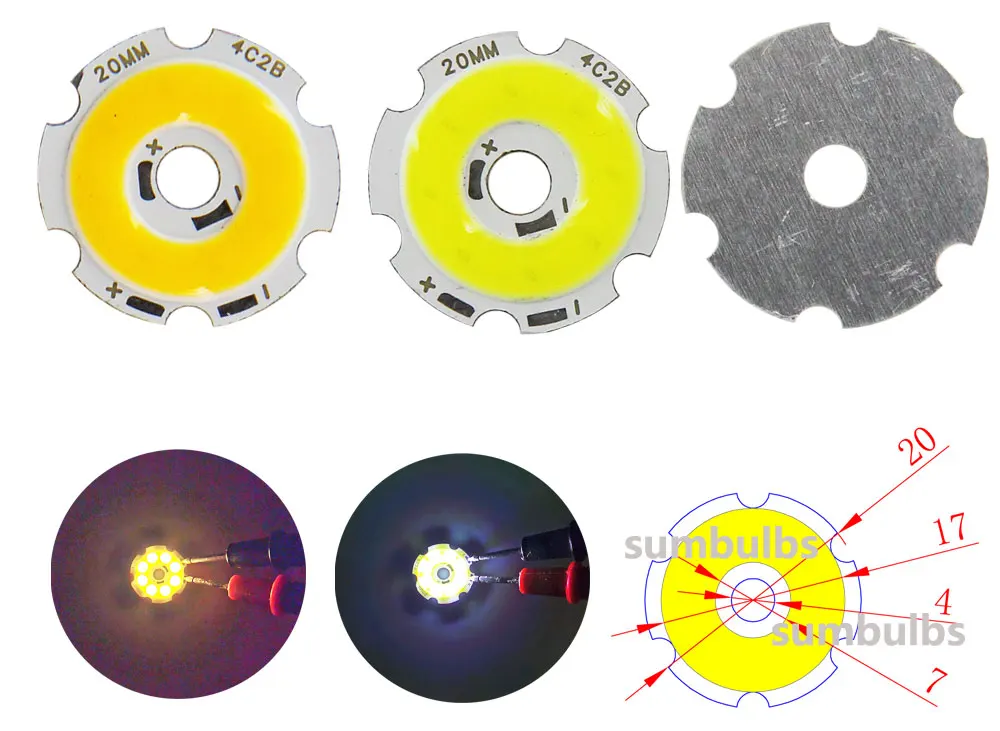

â… . φ20mm angel eyes Description
Item Type: angel-20-0402
Outsize: φ20mm
Insize: φ7mm
Thickness: 2-2.5mm
Power: 2W
Input voltage:12V DC
Allowable maximum current: 300mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

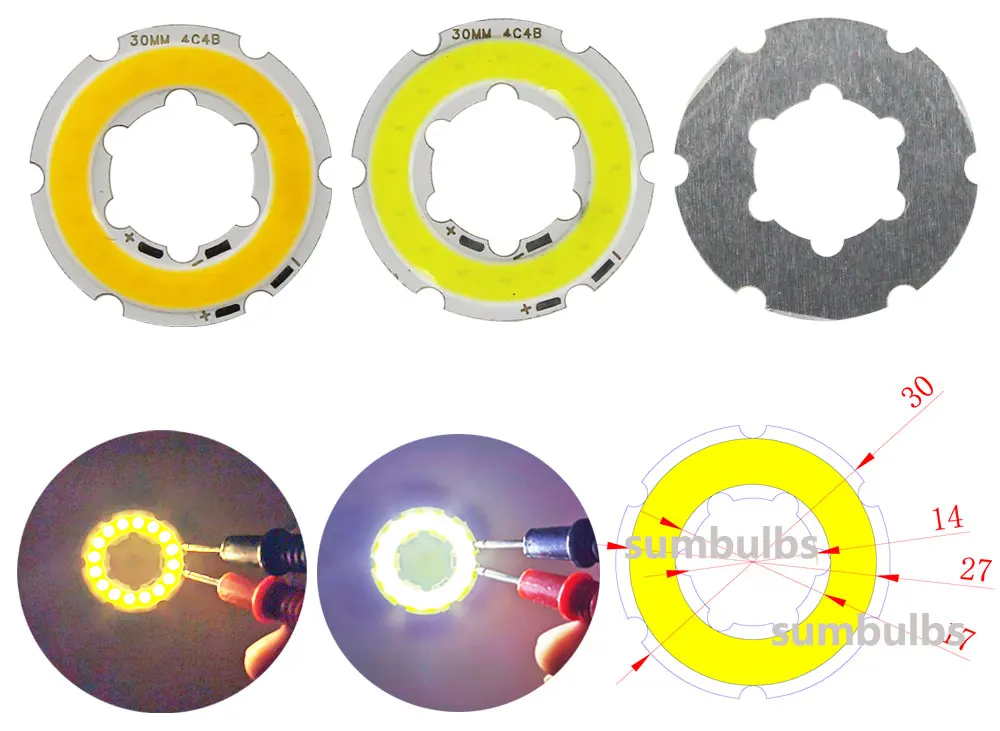

Ⅱ. φ30mm angel eyes Description
Item Type: angel-30-0404
Outsize: φ30mm
Insize: φ14mm
Thickness: 2-2.5mm
Power: 3W
Input voltage:12V DC
Allowable maximum current: 350mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

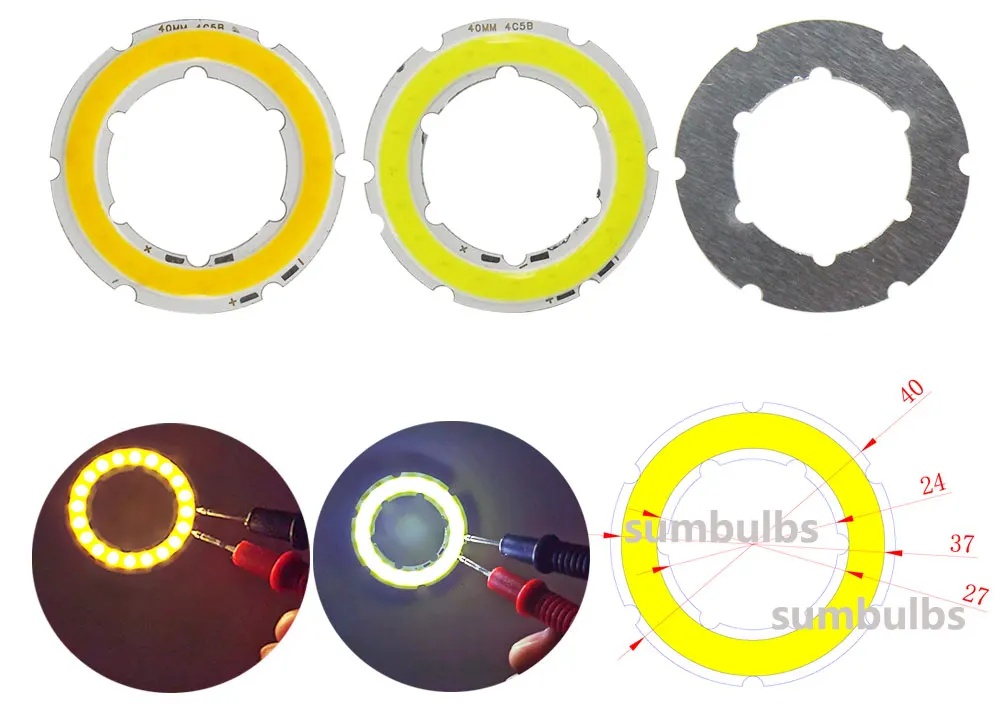

Ⅲ. φ40mm angel eyes Description
Item Type: angel-40-0405
Outsize: φ40mm
Insize: φ24mm
Thickness: 2-2.5mm
Power: 4W
Input voltage:12V DC
Allowable maximum current: 400mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

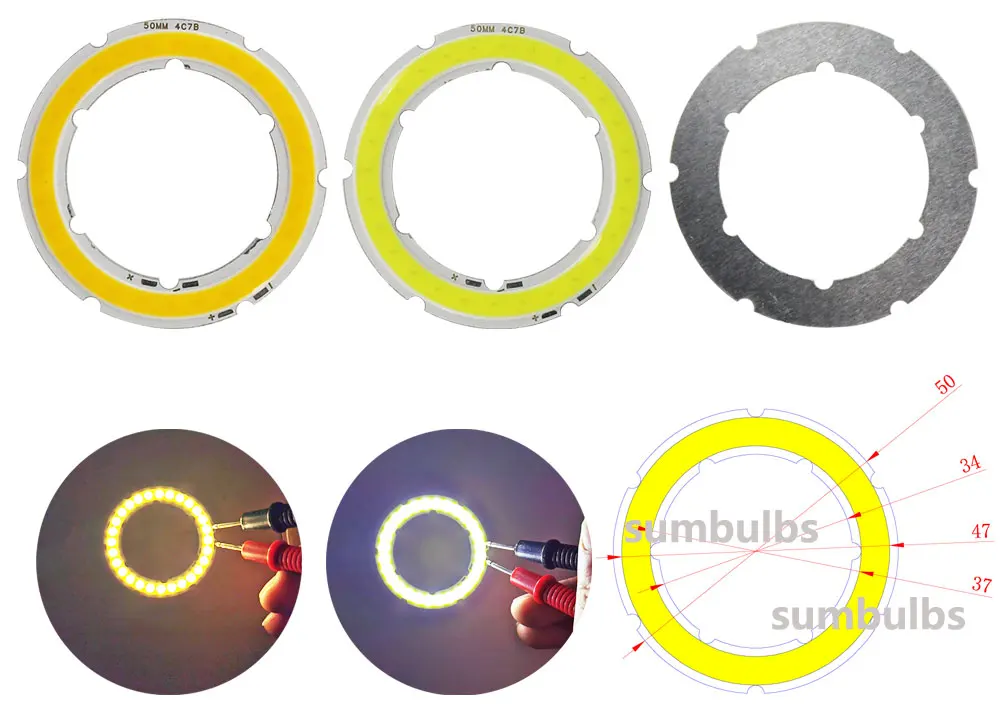

Ⅳ. φ50mm angel eyes Description
Item Type: angel-50-0407
Outsize: φ50mm
Insize: φ34mm
Thickness: 2-2.5mm
Power: 5W
Input voltage:12V DC
Allowable maximum current: 500mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

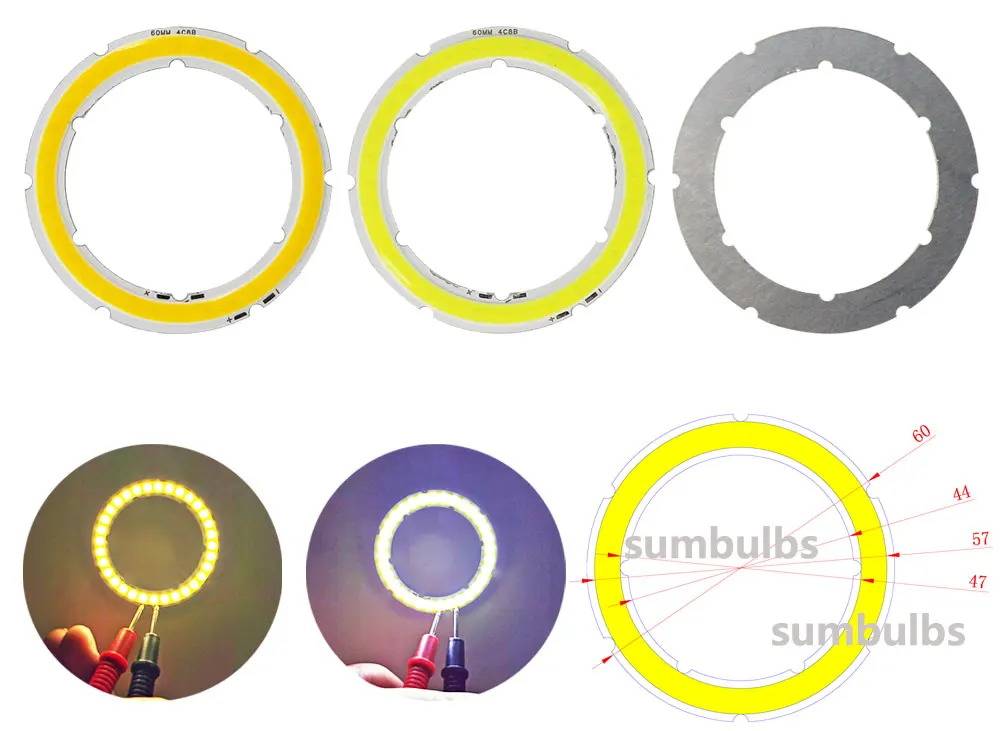

Ⅴ. φ60mm angel eyes Description
Item Type: angel-60-0408
Outsize: φ60mm
Insize: φ44mm
Thickness: 2-2.5mm
Power: 6W
Input voltage:12V DC
Allowable maximum current: 600mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

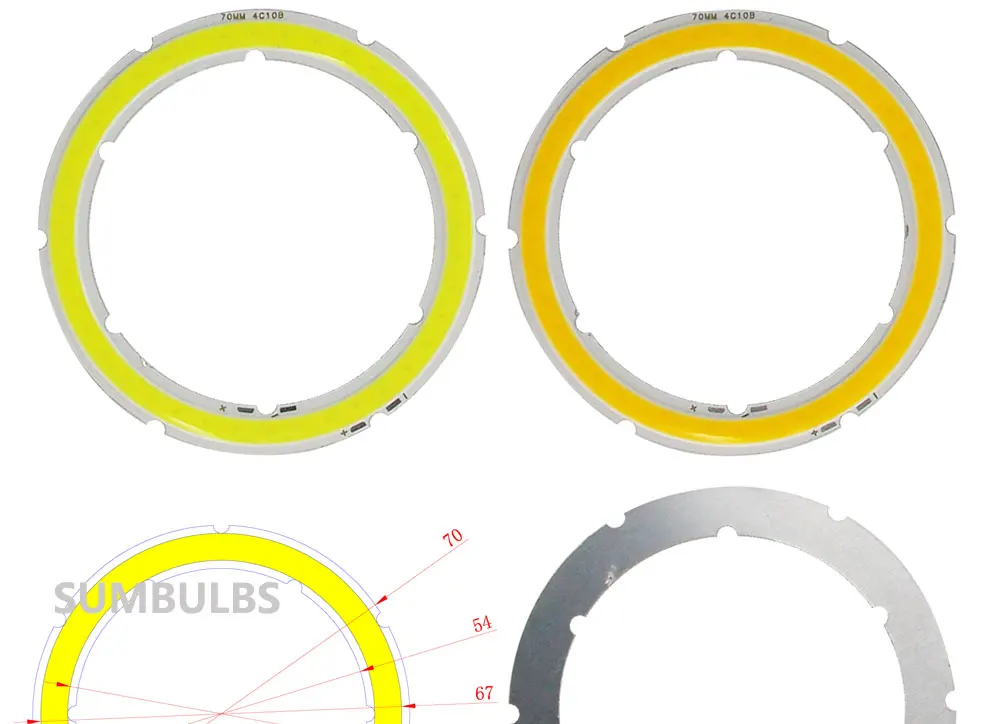

Ⅵ. φ70mm angel eyes Description
Item Type: angel-70-0410
Outsize: φ70mm
Insize: φ54mm
Thickness: 2-2.5mm
Power: 7W
Input voltage:12V DC
Allowable maximum current: 700mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

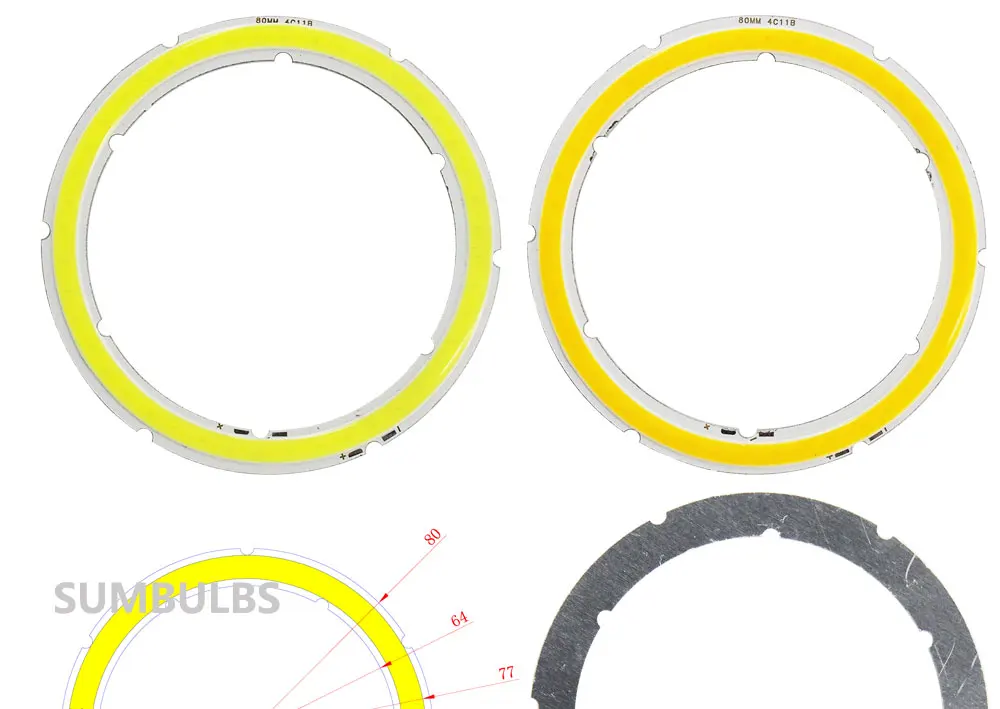

Ⅶ. φ80mm angel eyes Description
Item Type: angel-80-0411
Outsize: φ80mm
Insize: φ64mm
Thickness: 2-2.5mm
Power: 8W
Input voltage:12V DC
Allowable maximum current: 800mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

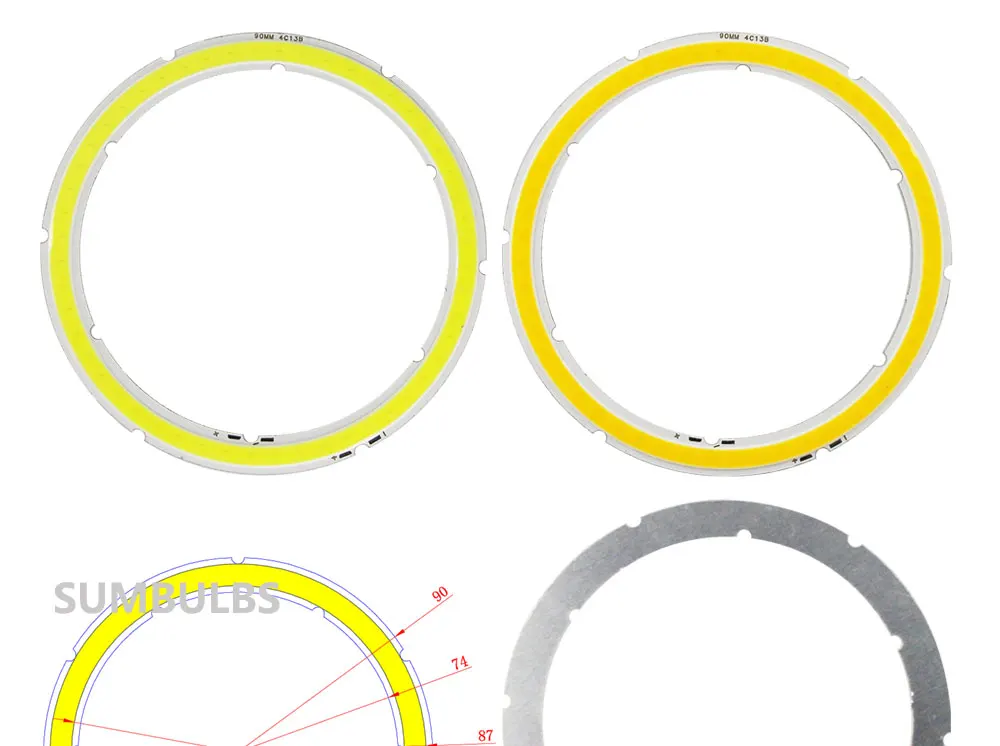

Ⅷ. φ90mm angel eyes Description
Item Type: angel-90-0413
Outsize: φ90mm
Insize: φ74mm
Thickness: 2-2.5mm
Power: 9W
Input voltage:12V DC
Allowable maximum current: 900mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

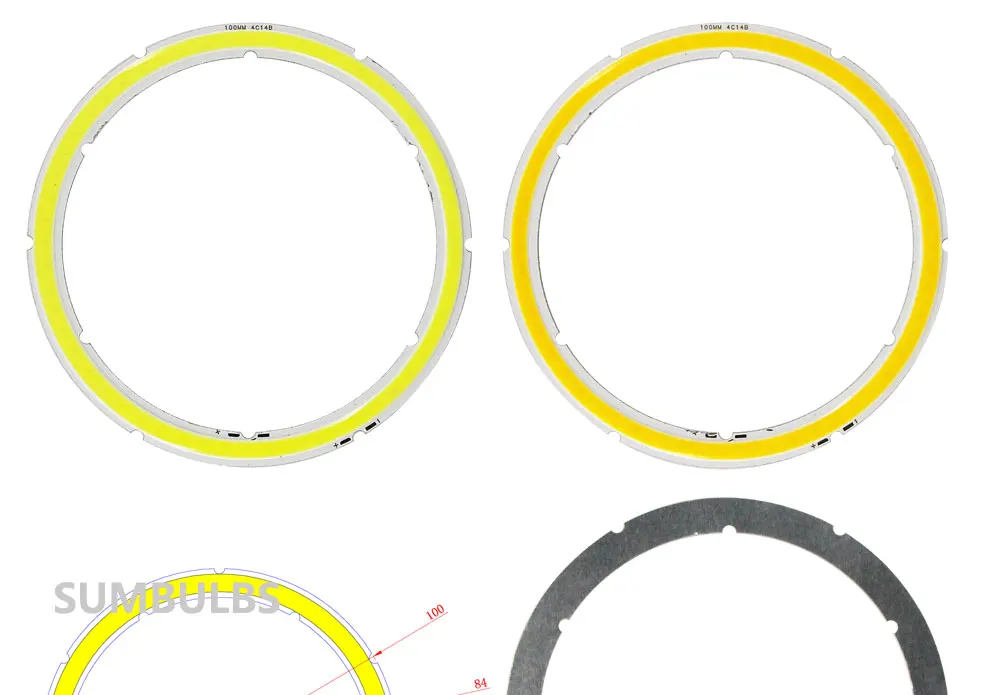

Ⅸ. φ100mm angel eyes Description
Item Type: angel-100-0414
Outsize: φ100mm
Insize: φ84mm
Thickness: 2-2.5mm
Power: 10W
Input voltage:12V DC
Allowable maximum current: 1000mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

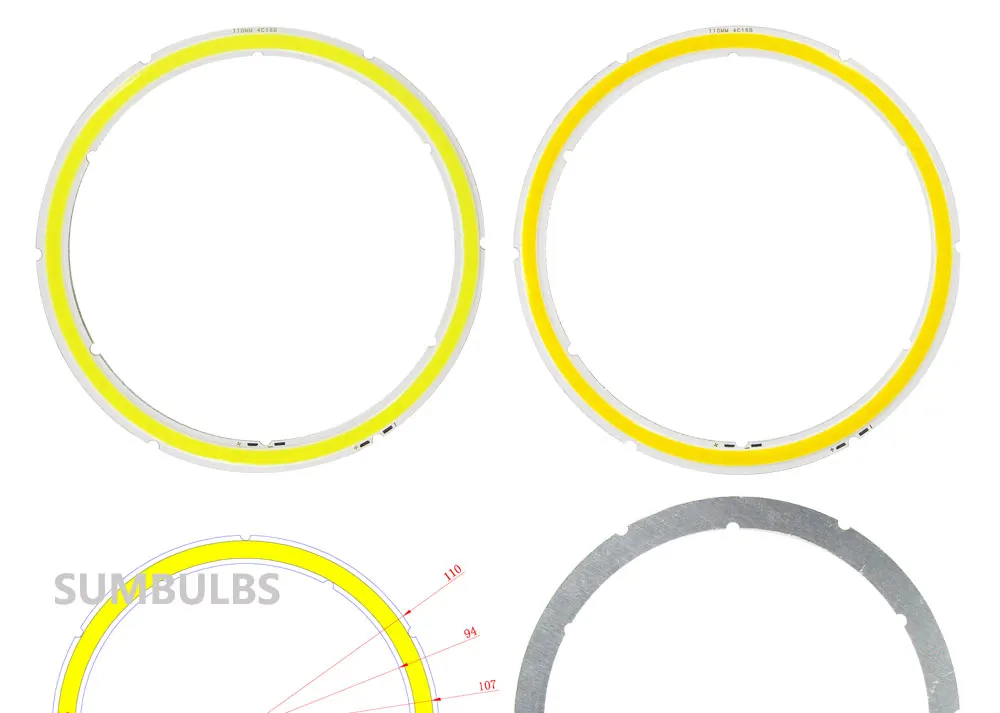

Ⅹ. φ110mm angel eyes Description
Item Type: angel-110-0415
Outsize: φ110mm
Insize: φ94mm
Thickness: 2-2.5mm
Power: 11W
Input voltage:12V DC
Allowable maximum current: 1100mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.

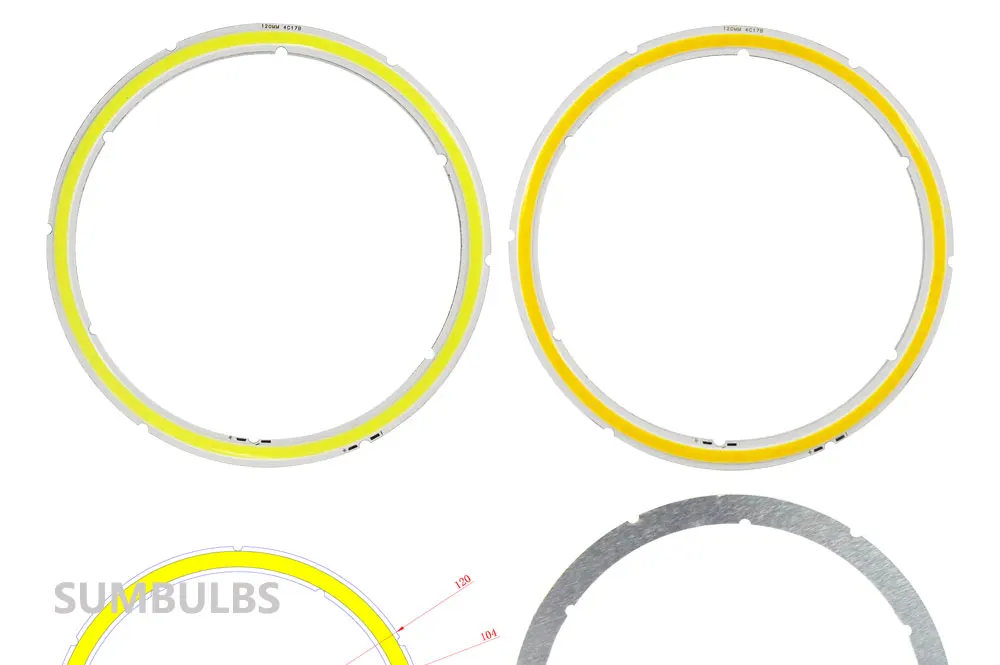

Ⅺ. φ120mm angel eyes Description
Item Type: angel-120-0417
Outsize: φ120mm
Insize: φ104mm
Thickness: 2-2.5mm
Power: 12W
Input voltage:12V DC
Allowable maximum current: 1200mA
Emitting color(CCT): Warm white(2800-3000k)/ Cold white(6000-6500k)
Luminous Flux: >100lm/w
Emitting angle: 120°
Note: Please add heatsink.
